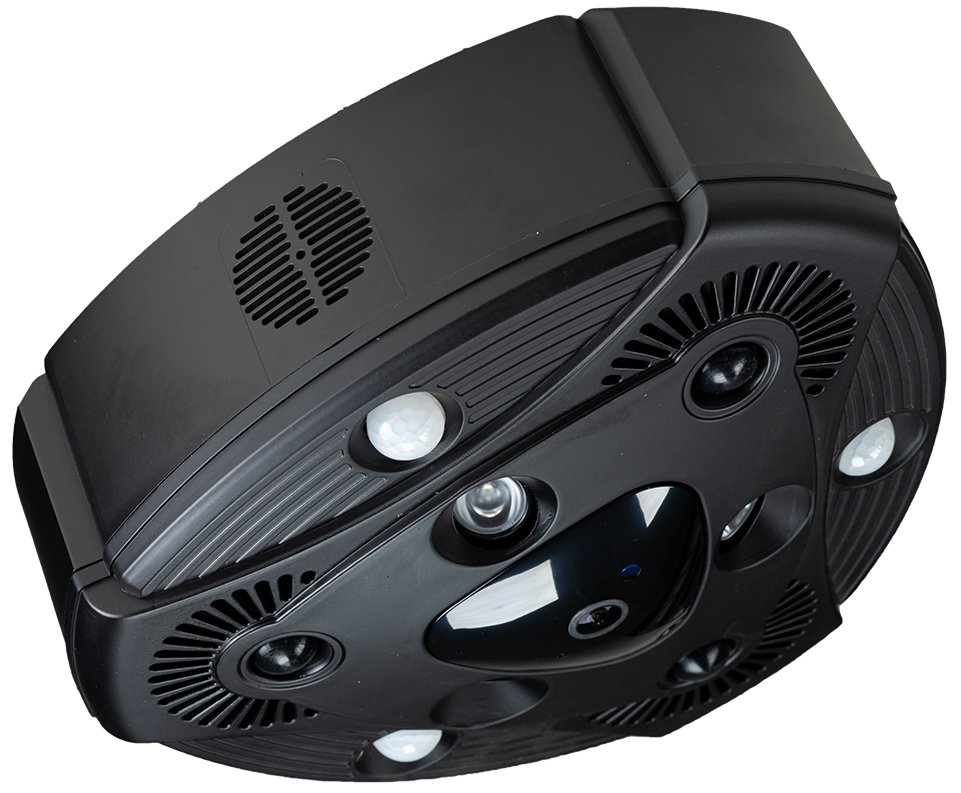

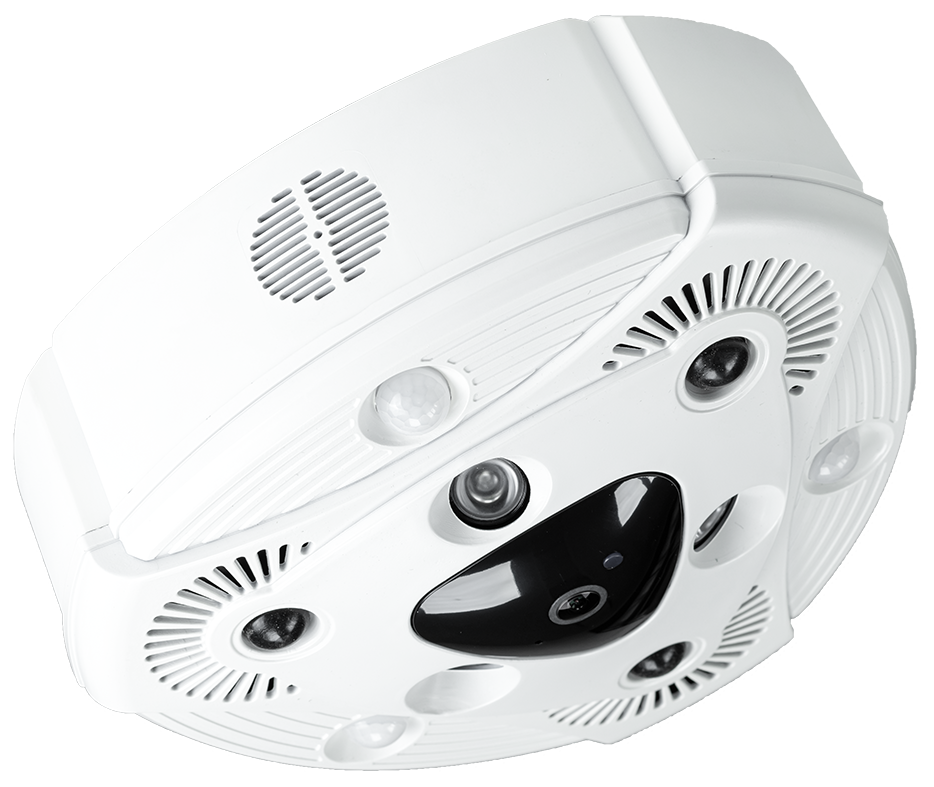

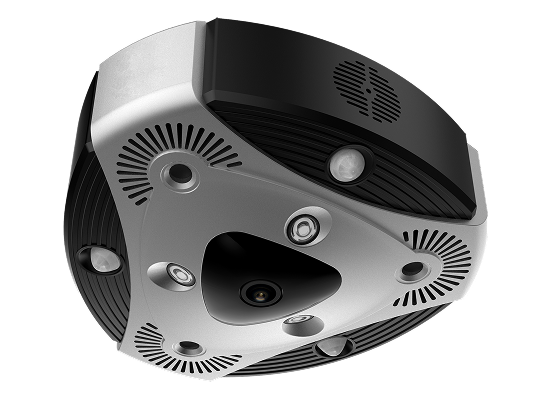

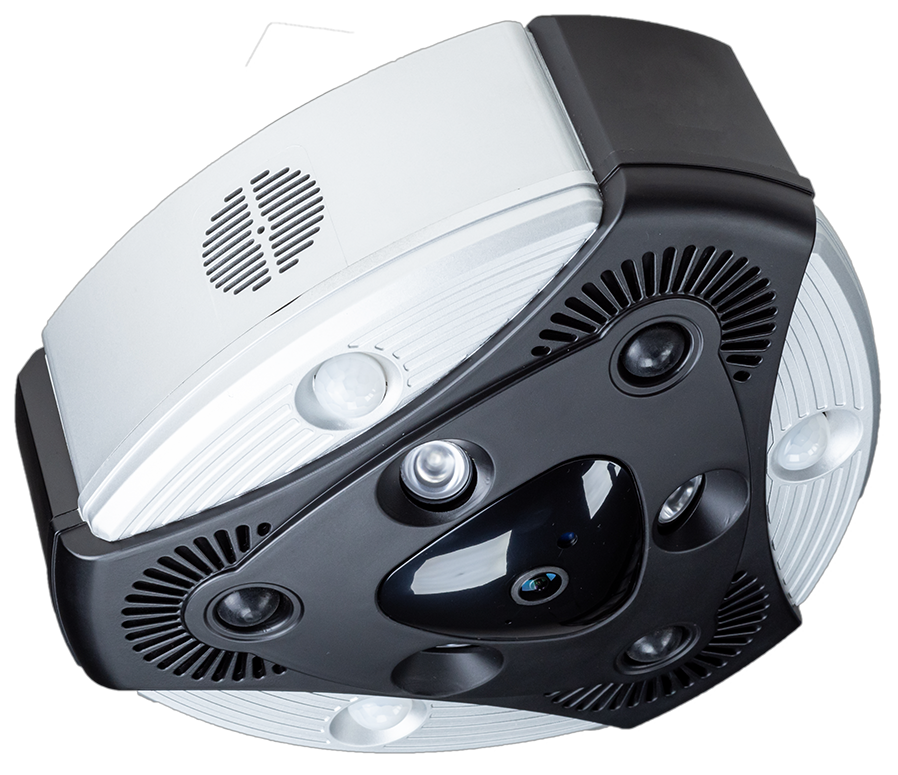

FS-H Series
High-Capacity Security Fog Systems
- Rapid large-area filling
- Industrial-grade housing
- Multiple nozzle configurations
- Centralized system management
- Low maintenance operation
Key Features (Status: Under Development )
AI-Powered( radar + camera) Intrusion Detection
Integrated Smoke, Soun(120DB siren), and Light Deterrence

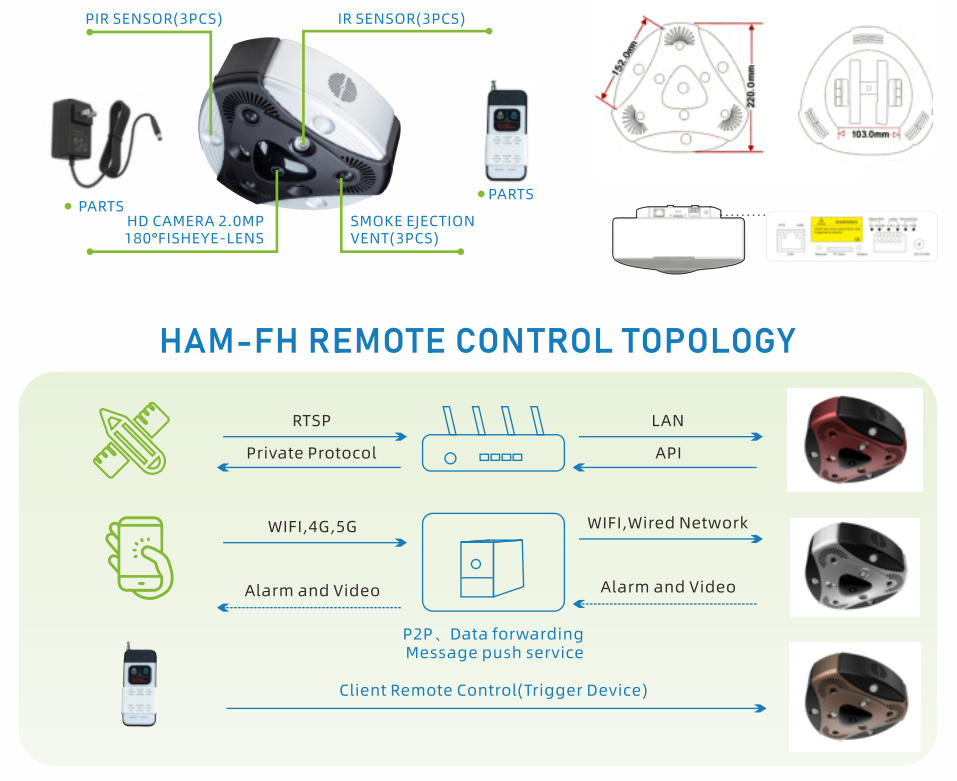

Three-Cameras Full Scene Coverage
Smart App Control via Tuya
Flexible Power( 12 V DC input & 21700 battery cells) and Installation
Remote Controller for Quick On-Site Operation
Protection for areas up to 300 m³
Available FS-H Series models
| MODEL | CONFIGURATION | RECOMMENDED FOR |
|---|---|---|
| FS-H300 | Network camera, Intrusion & alarm detection, Two-way audio, Active smoke intervention, Unified housing.
Supports standard network protocols and mobile-app management for easy integration into small-scale security setups. |
Small shops and convenience stores, Apartments and houses. Any site needing quick deployment and minimal wiring. |
Applications
Residential properties
Villas and private homes
Retail stores
Jewelry stores
Warehouses
Offices and commercial facilities

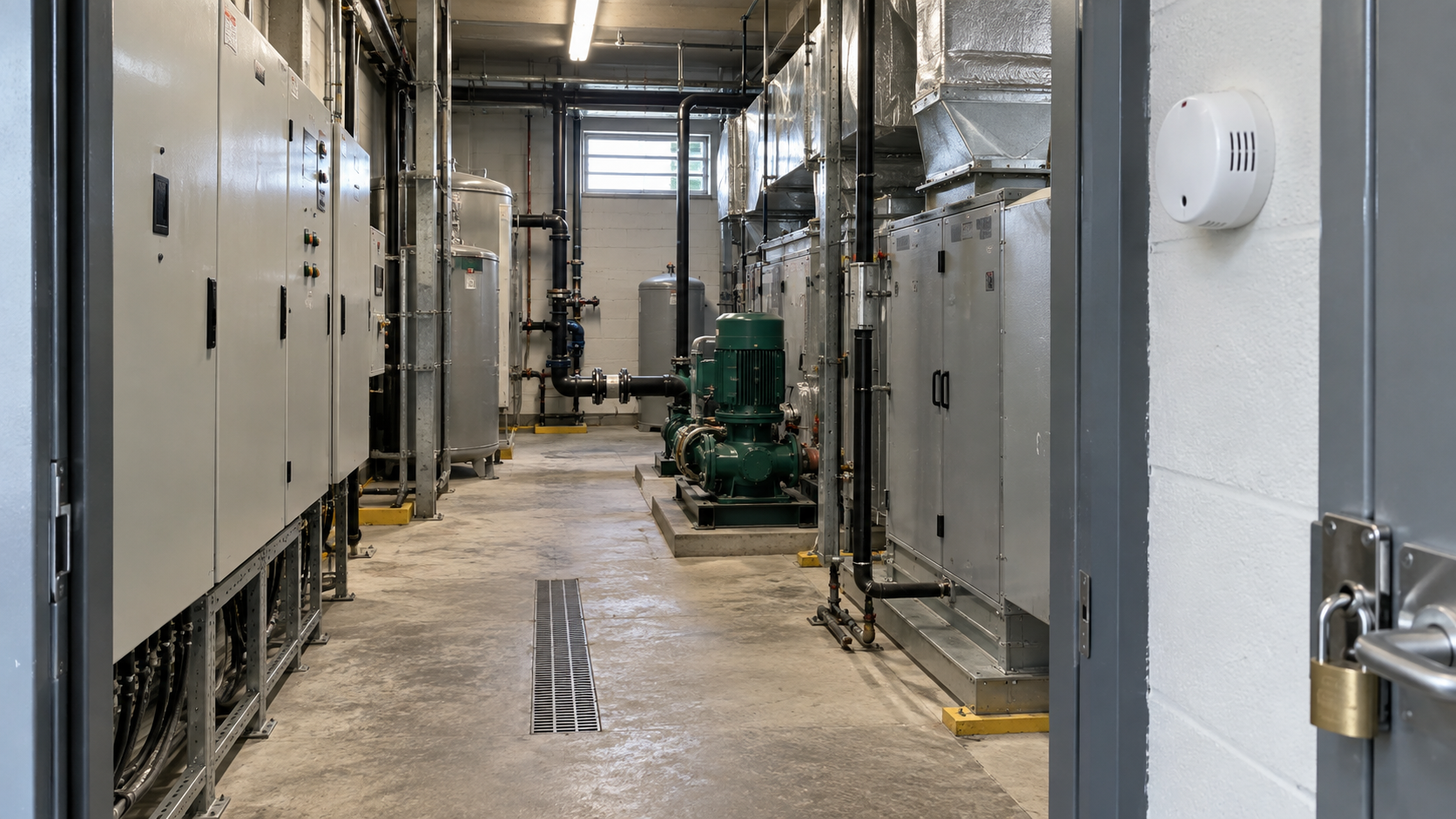

Unattended equipment rooms.
High-value storage areas

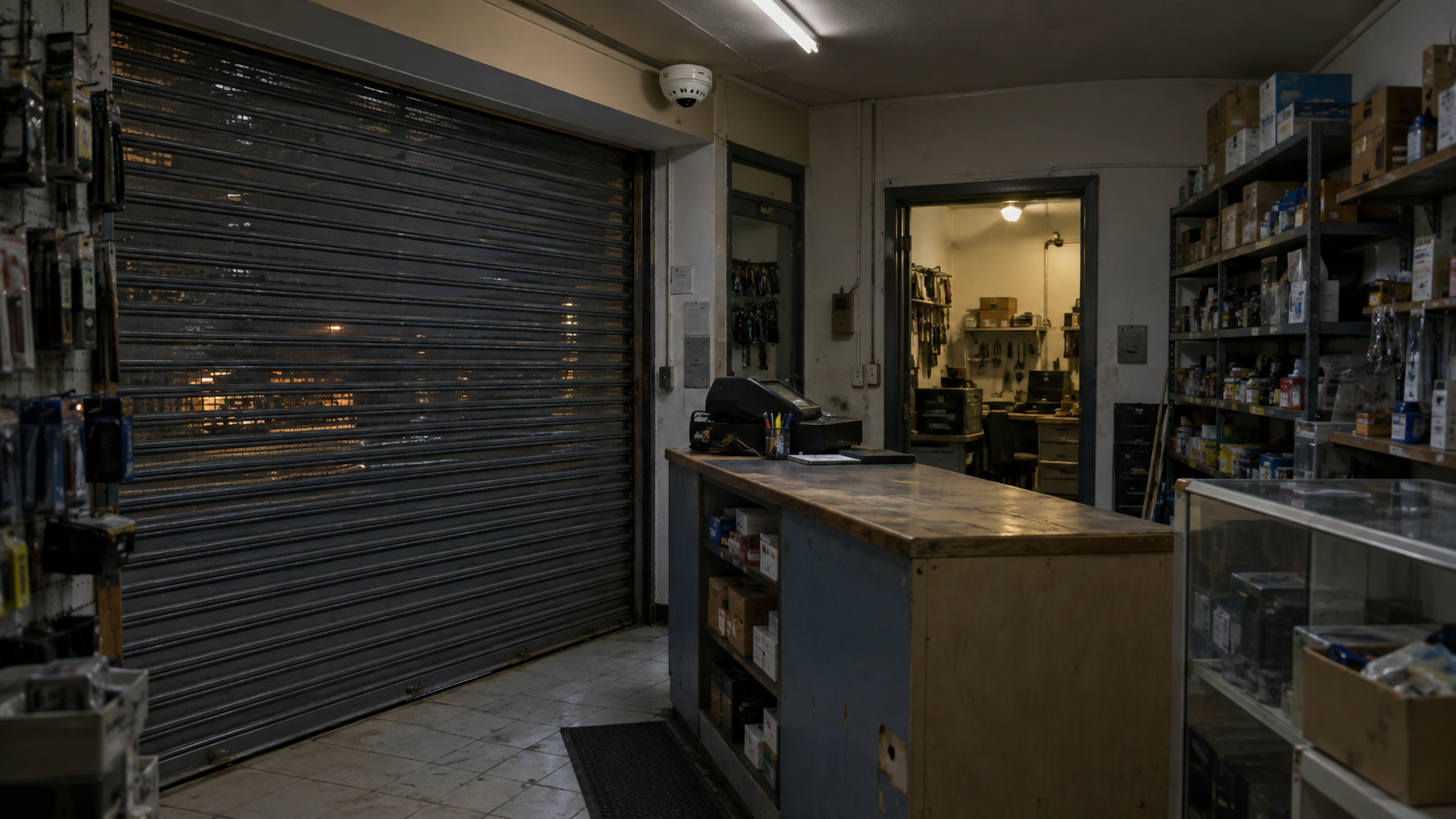

Small business premises.

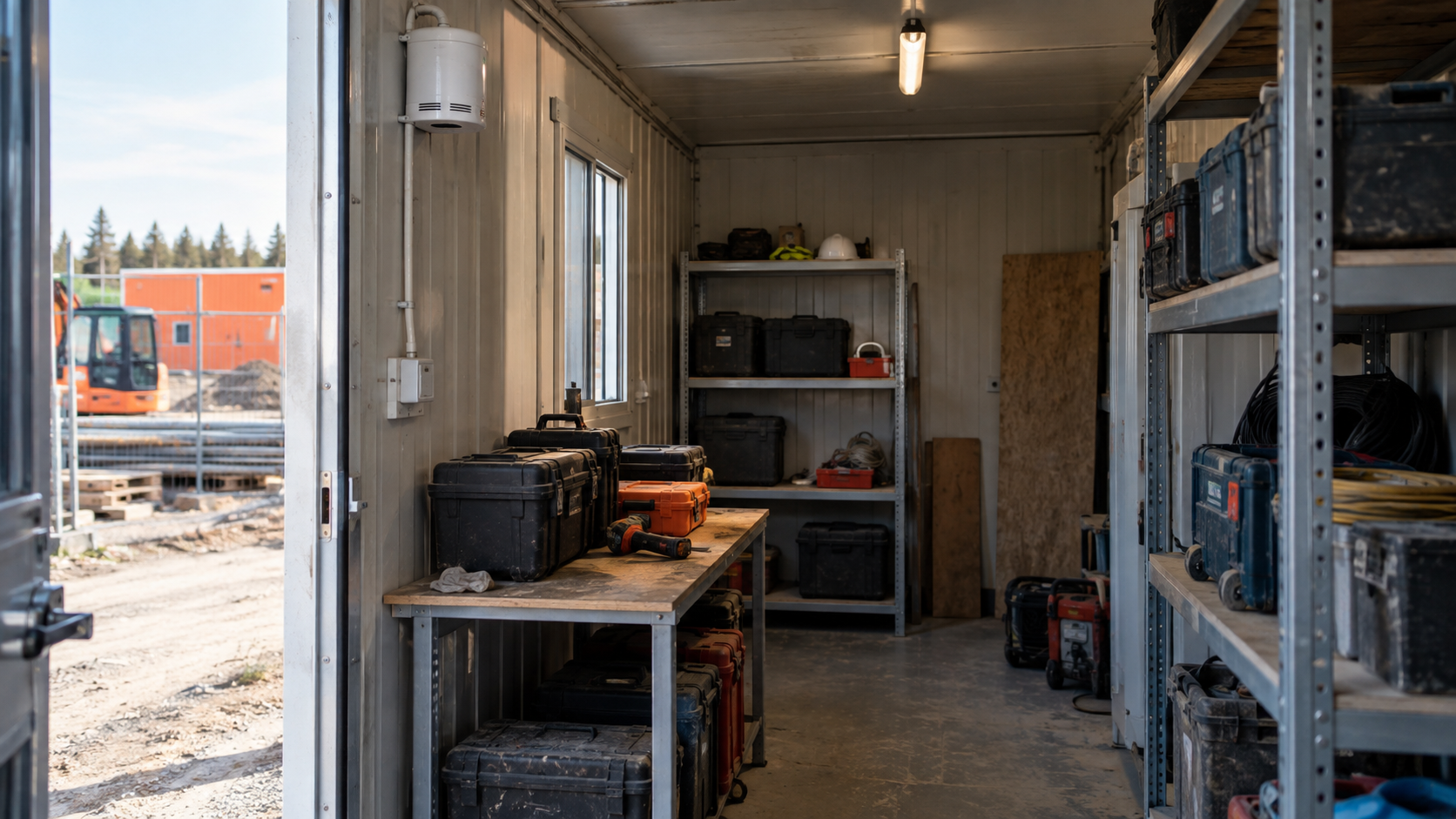

Mobile or temporary security applications
How It Works
Armed Mode
When the system is armed, the radar modules and cameras monitor the protected area. If human activity is detected according to the configured detection logic, the system can:
Record a 5-second video clip.
Send an intrusion notification to the Tuya Smart App.
Activate the configured security fog response.
Sound the 120 dB siren.
Flash the high-brightness LED lights.
Disarmed Monitoring Mode
In disarmed monitoring mode, the system continues to monitor the protected area without automatically activating the alarm.
When human activity is detected:
1. The Tuya Smart App receives an intrusion notification.
2. The user checks the live video from the three cameras.
3. If unauthorized access is confirmed, the user presses Activate Alarm in the app.
4. The system activates the configured security fog, siren, and strobe-light response.
Alarm Detection
FS-H Series Activation
Security Smoke Discharge
Reduced Visibility
More Time for Response
Why Choose FS-H Series?
Requirement | FS-H300 Advantage |
Fast deployment, minimal cabling and configuration.
No need to buy and integrate separate cameras, alarm panels, intercoms, and smoke units. Wireless control
| All-in-one design: network camera + intrusion detection/alarm + two-way audio + 120DB siren, smoke intervention in one enclosure. |
“One device, one system”: each unit functions as a complete mini security system without extra accessories | |
Tuya Smart App monitoring and control. | |
Dual-band Wi-Fi and Gigabit Ethernet. Optional backup battery support. |

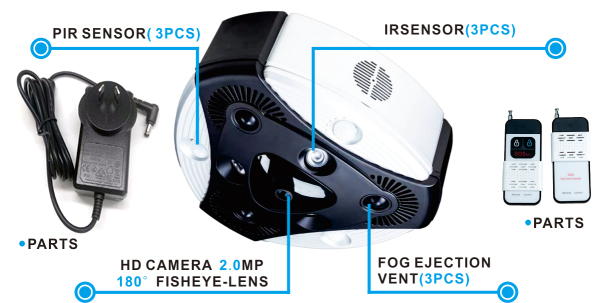

How many cameras are included in the FS-H300?
The system includes three pcs 2MP camera modules that support simultaneous image capture, video recording, and live monitoring.
How do the radar and cameras work together?
The radar modules provide live human-body detection and assist the camera-based human recognition algorithm. This combined approach helps improve the accuracy of intrusion monitoring.
Can I view all three cameras through the app?
Yes. The Tuya App supports three-channel live video. A single camera view can also be enlarged for closer inspection.
Can the system automatically trigger the alarm?
Yes. In armed mode, the system can automatically trigger the configured alarm response when radar and cameras detect an unauthorized person entering the monitored area.
Can I verify the event before activating the alarm?
Yes. In disarmed mode, the system sends an intrusion notification to the Tuya App. The user can view the live video and manually activate the alarm if an unauthorized intrusion is confirmed.
What happens when the alarm is activated?
Depending on the configured alarm logic, the system can release security fog, activate the 120 dB siren, and flash the high-brightness LED lights.
Does the FS-H300 support two-way communication?
Yes. The built-in microphone and speaker support remote video and two-way audio communication through the Tuya App.
Can the system connect to the internet through a network cable?
Yes. The FS-H300 supports RJ45 Ethernet as well as dual-band 2.4 GHz / 5 GHz WiFi.
Does it support backup power?
Yes. The system supports two 21700 batteries connected in series for charging and discharge functions.
Does the product support OEM/ODM customization?
Yes. Verinuo can evaluate customized requirements for suitable OEM/ODM projects.
Need Help Selecting the Right Model?
Our team can help you select the appropriate FS-H Series configuration based on your application, protected area, alarm system, control method, and project requirements.
