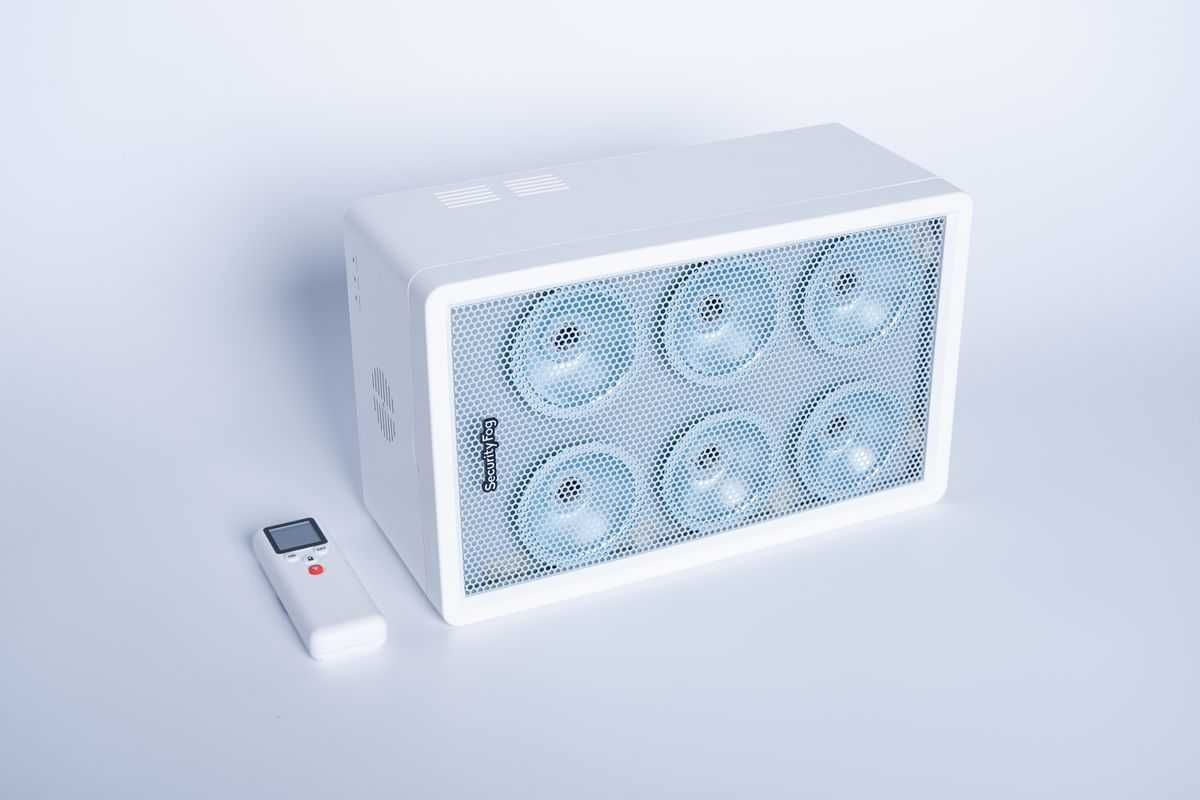

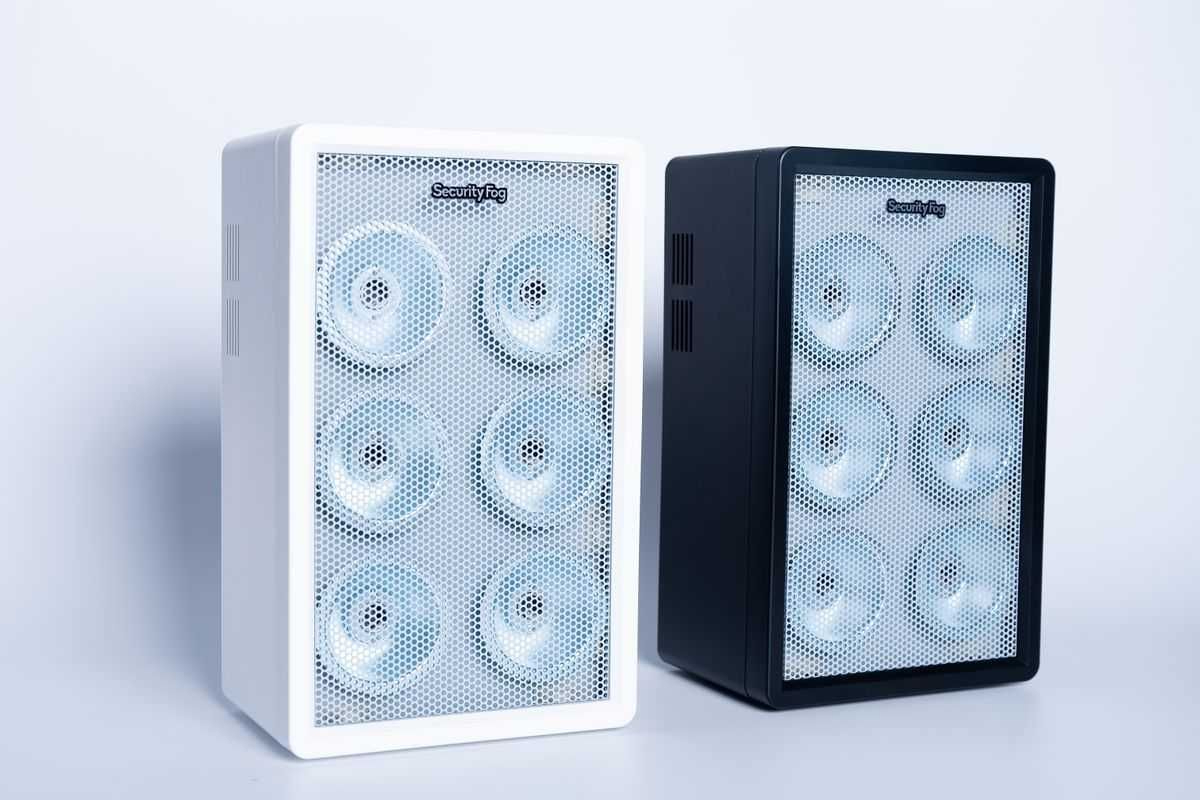

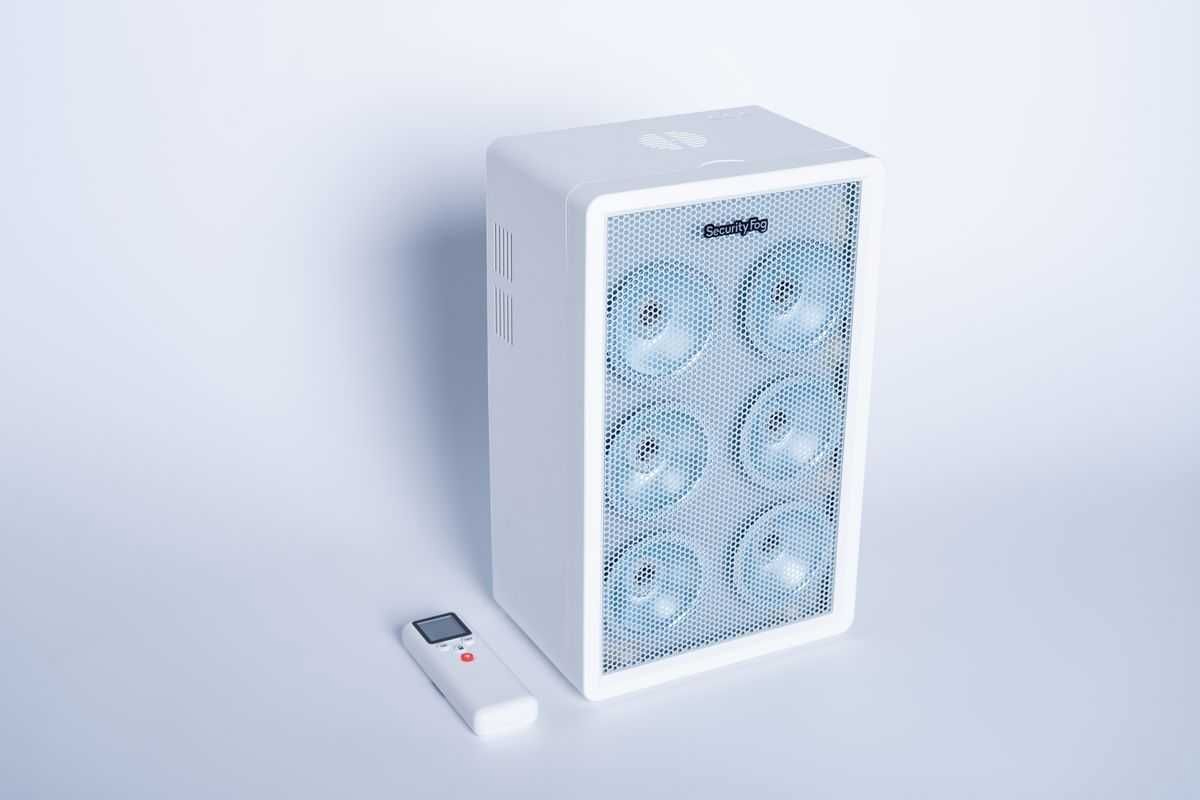

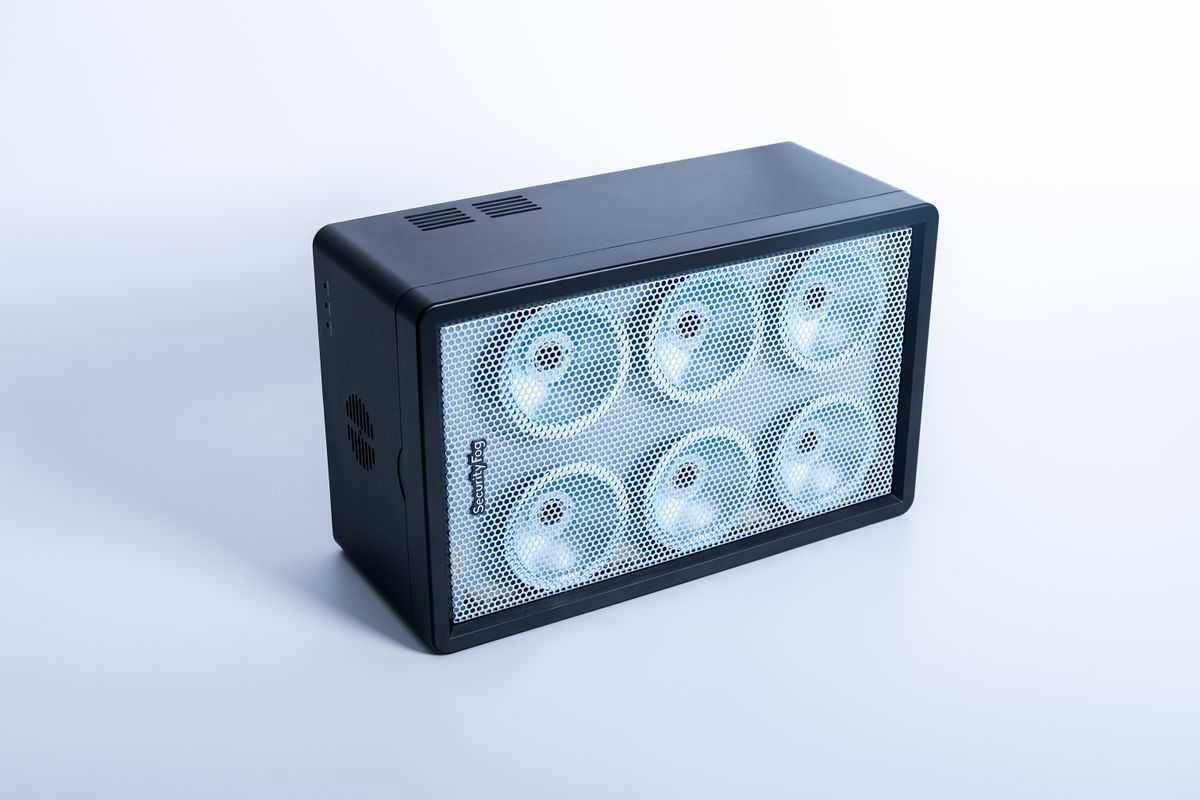

FS-P600 Series
Professional Security Fog Generators
- High-density smoke output
- Multiple triggering interfaces
- Smart status monitoring
- Dual power supply options
- Compact cabinet design
Key Features
Instant Visual Deterrent
Releases dense smoke quickly to block intruders’ visibility and slow down theft or robbery attempts.
Large-Area Protection
Suitable for commercial sites and protection areas of up to 600 m³, depending on the project.
Three Adjustable Output Levels
Flexible output settings for different room sizes and security requirements.
120 dB Siren Deterrence
Strong audio deterrence to disrupt intruders and draw attention immediately.
RF Remote Control with Clear Status Display
View essential system status information at a glance and trigger security fog instantly with the dedicated RF alarm button.
External Power with Battery Backup
The system uses a stable 12V/10A external power supply and supports a backup battery configuration for continued protection during temporary power interruptions.
Commercial Security Integration
Supports wired dry-contact connection with alarm systems for coordinated intrusion response.
Compact and Discreet Design
A sleek, low-profile design allows discreet installation above cash counters, inside ATMs, or near high-value safes.
Cost-Effective & Refillable
A sustainable solution with an easily replaceable smoke canister after each deployment.
Available FS-P600 Series models
| MODEL | CONFIGURATION | RECOMMENDED FOR |
|---|---|---|
| FS-P600R | Remote control version | Projects requiring basic wired alarm integration |
| FS-P600C | Camera integrated version | Smart security and remote appmanagement applications |
Applications

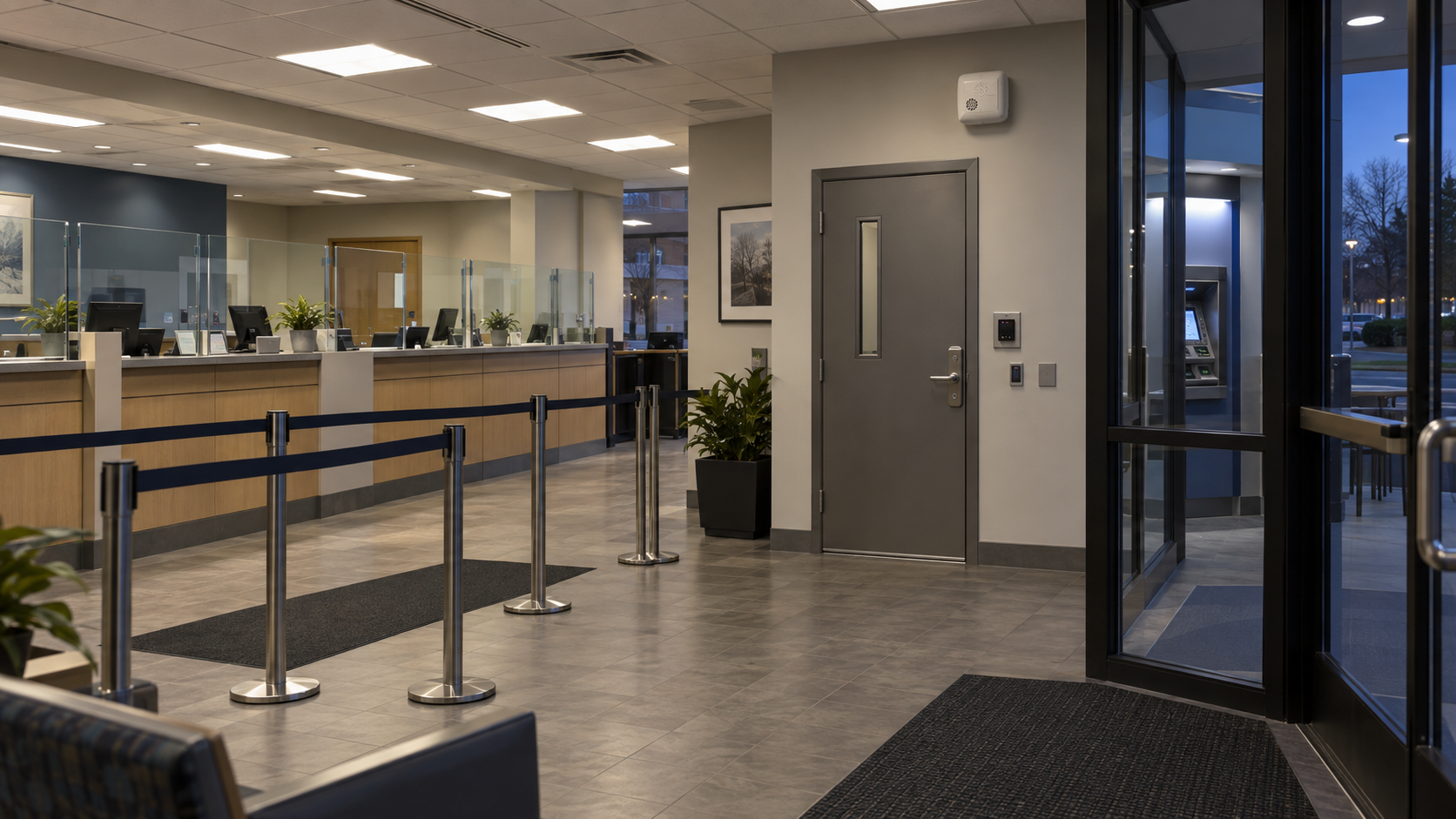

Banks
Protect cash handling areas, restricted zones, and high-security rooms.

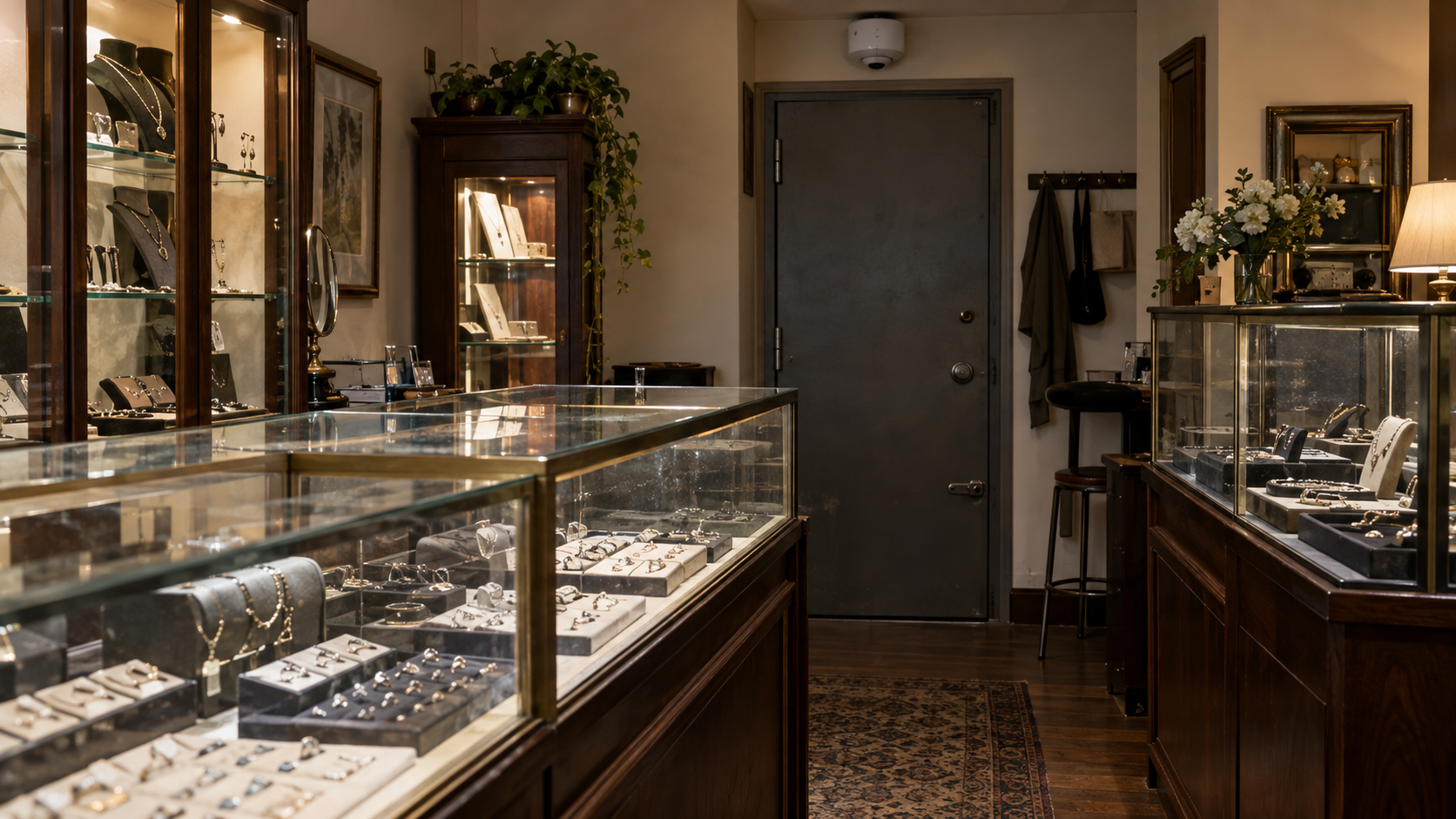

Jewelry Stores
Help disrupt grab-and-run theft and protect high-value displays.

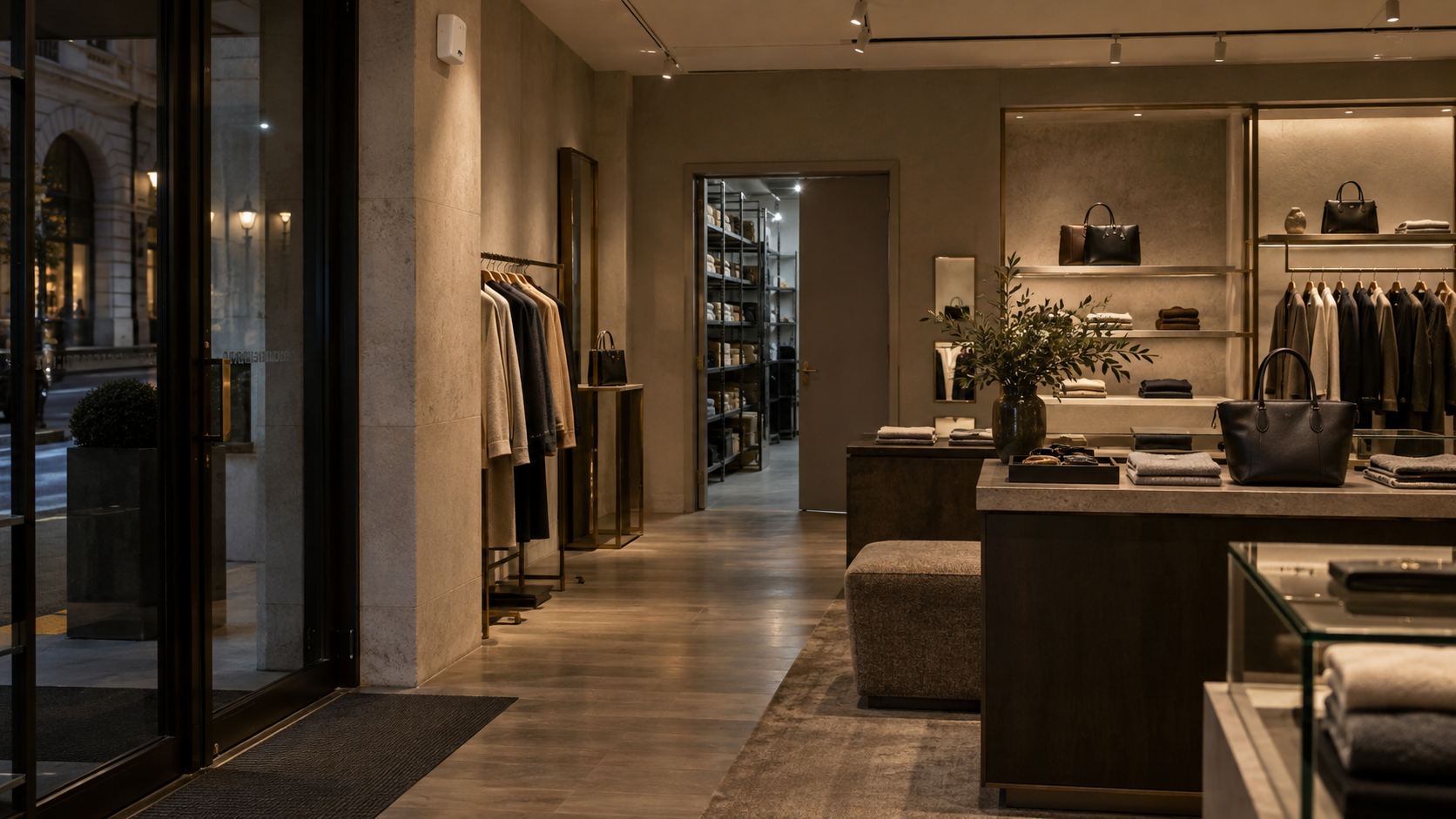

Luxury Retail
Add an active security barrier for premium products and sales areas.

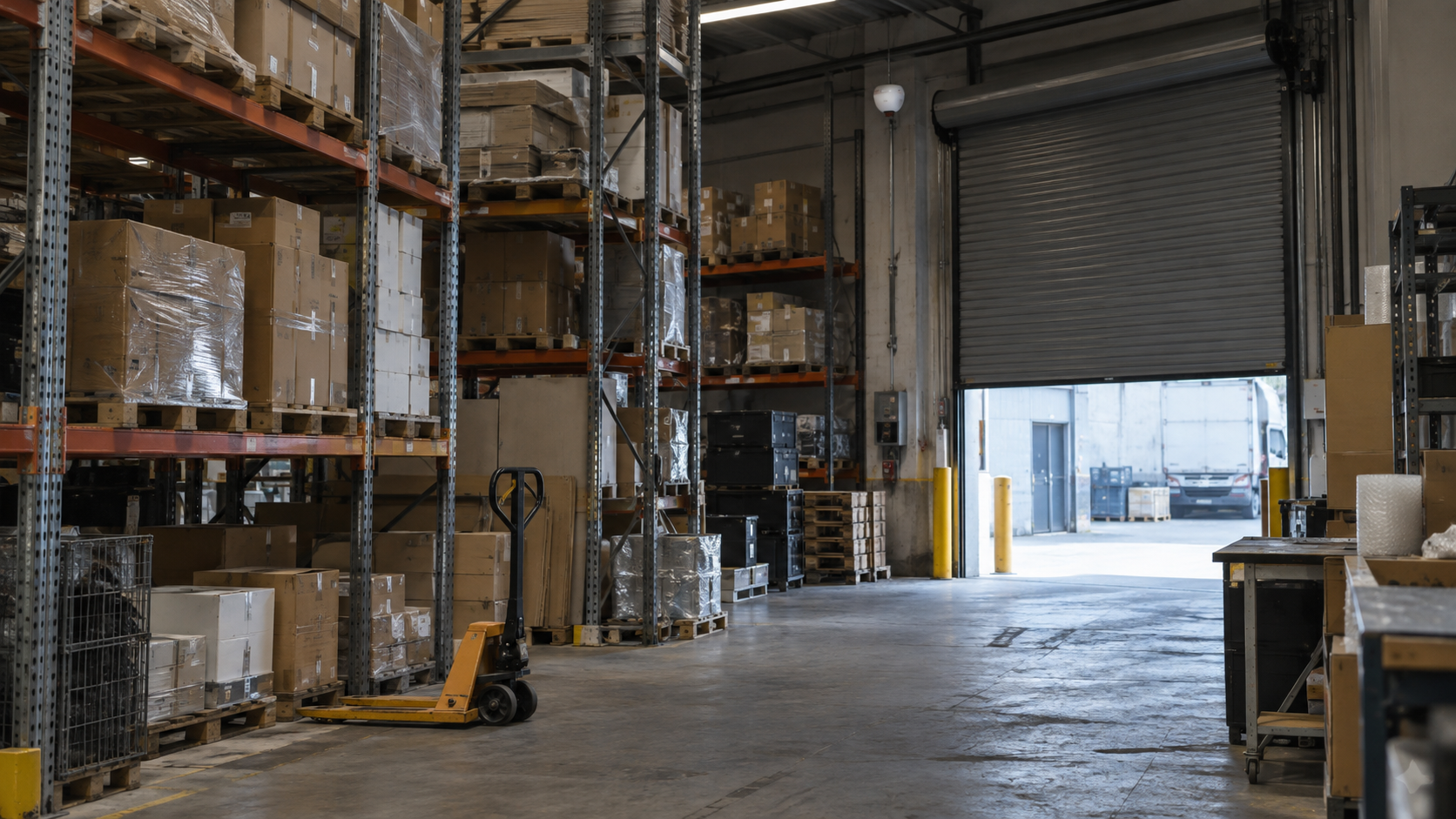

Warehouses
Protect inventory and valuable goods during after-hours intrusion attempts.
Commercial Facilities
Integrate with existing alarm systems for coordinated response.

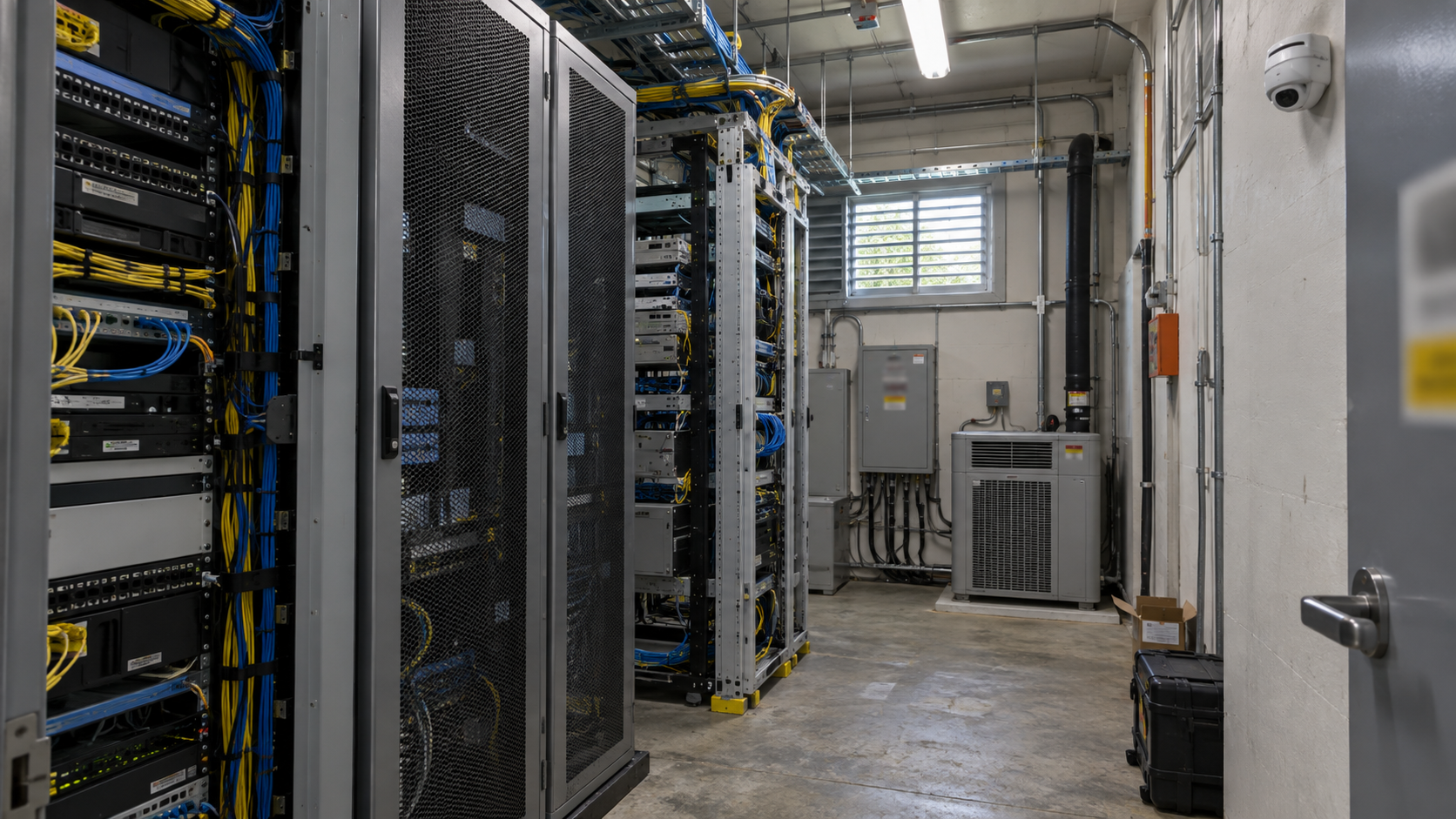

Telecom and Utility Sites
Support protection for unattended or restricted equipment areas.

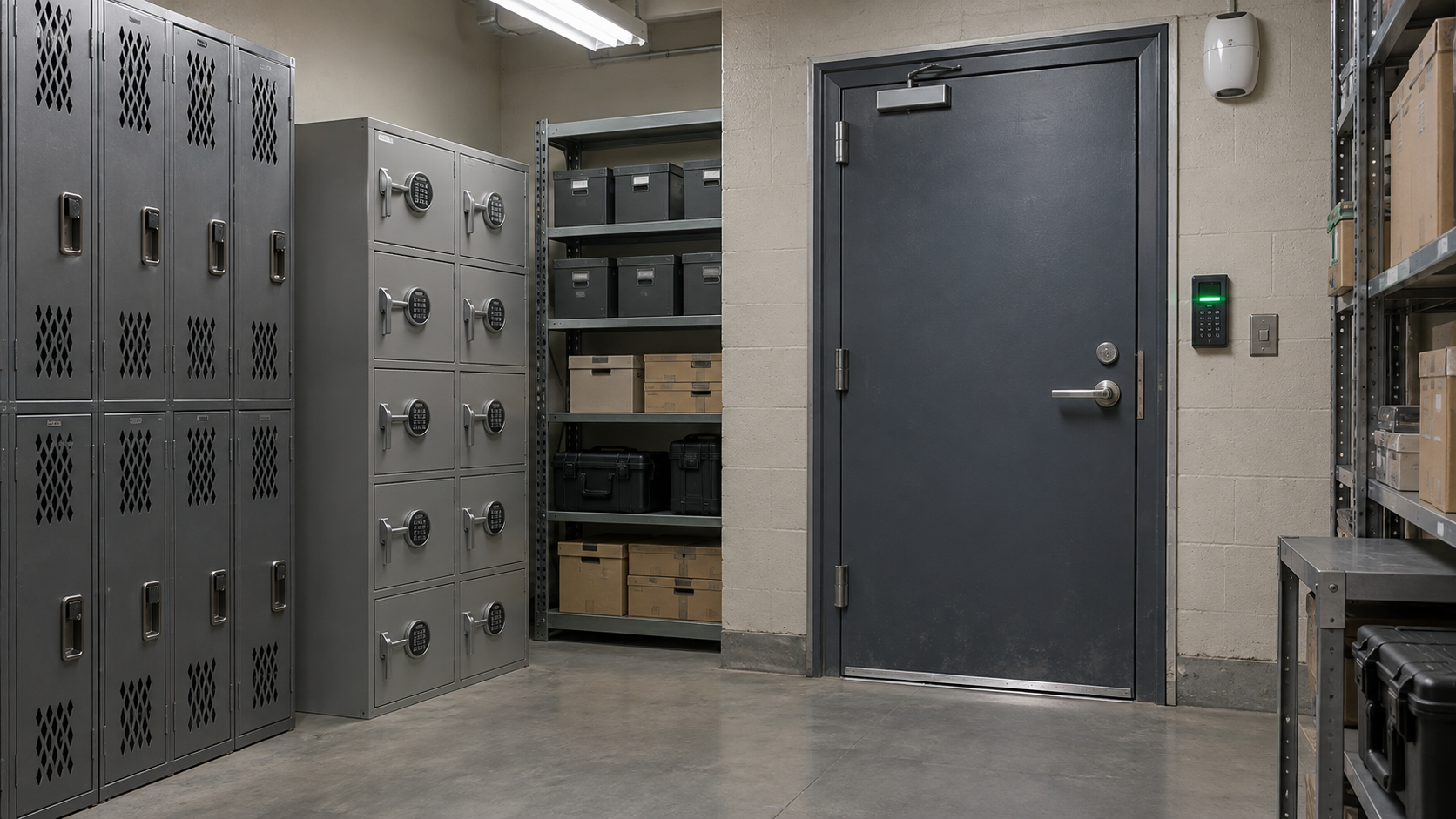

Storage Areas
Provide scalable fog protection according to the size of the protected space.

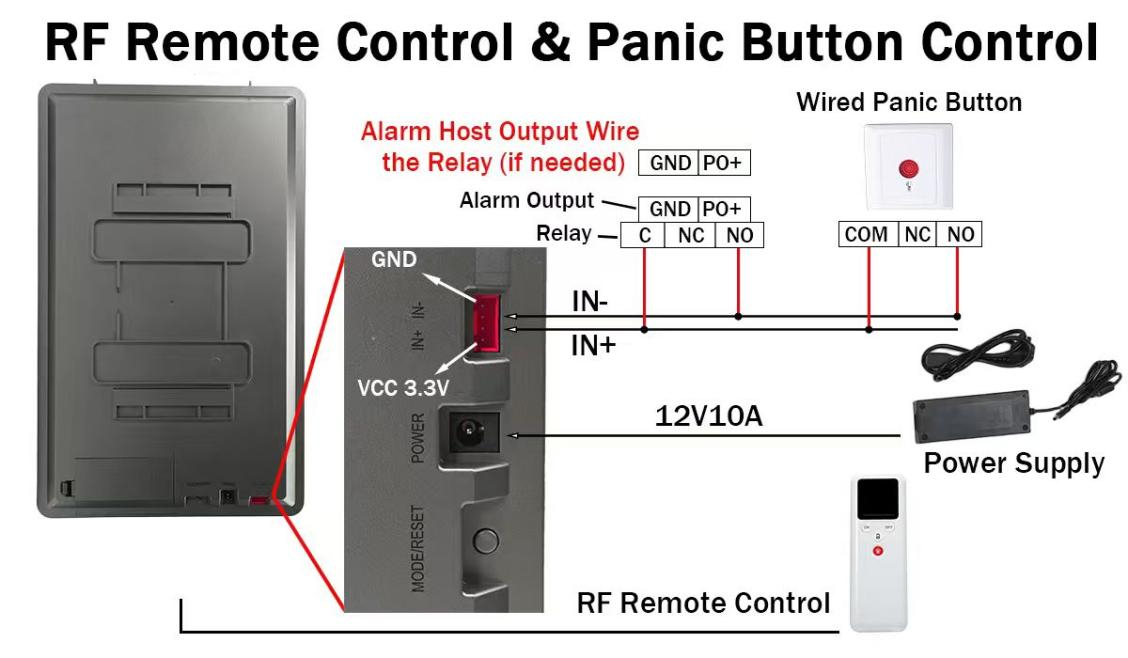

How It Works
Wired panic button
Press the wired panic button to activate the siren and trigger the smoke for immediate intrusion deterrence.
RF Remote control operation
Unlock the RF remote, then press and hold ON button. Voice alerts switch on and the selected level of canisters is activated.
Connection to compatible alarm panels via dry-contact signal
a. The system is connected to the alarm panel through a wired dry-contact signal.
b. When an intrusion is detected, the alarm system sends a trigger signal to the FS-P600R.
c. The system releases smoke according to the selected smoke output level, and the 120DB siren activates immediately to warn and disrupt the intruder.
d. The dense smoke reduces visibility and helps delay or stop the theft attempt.
e. Security personnel or response teams gain additional time to intervene.
Alarm Detection
FS-P600 Series Activation
Security Smoke Discharge
Reduced Visibility
More Time for Response

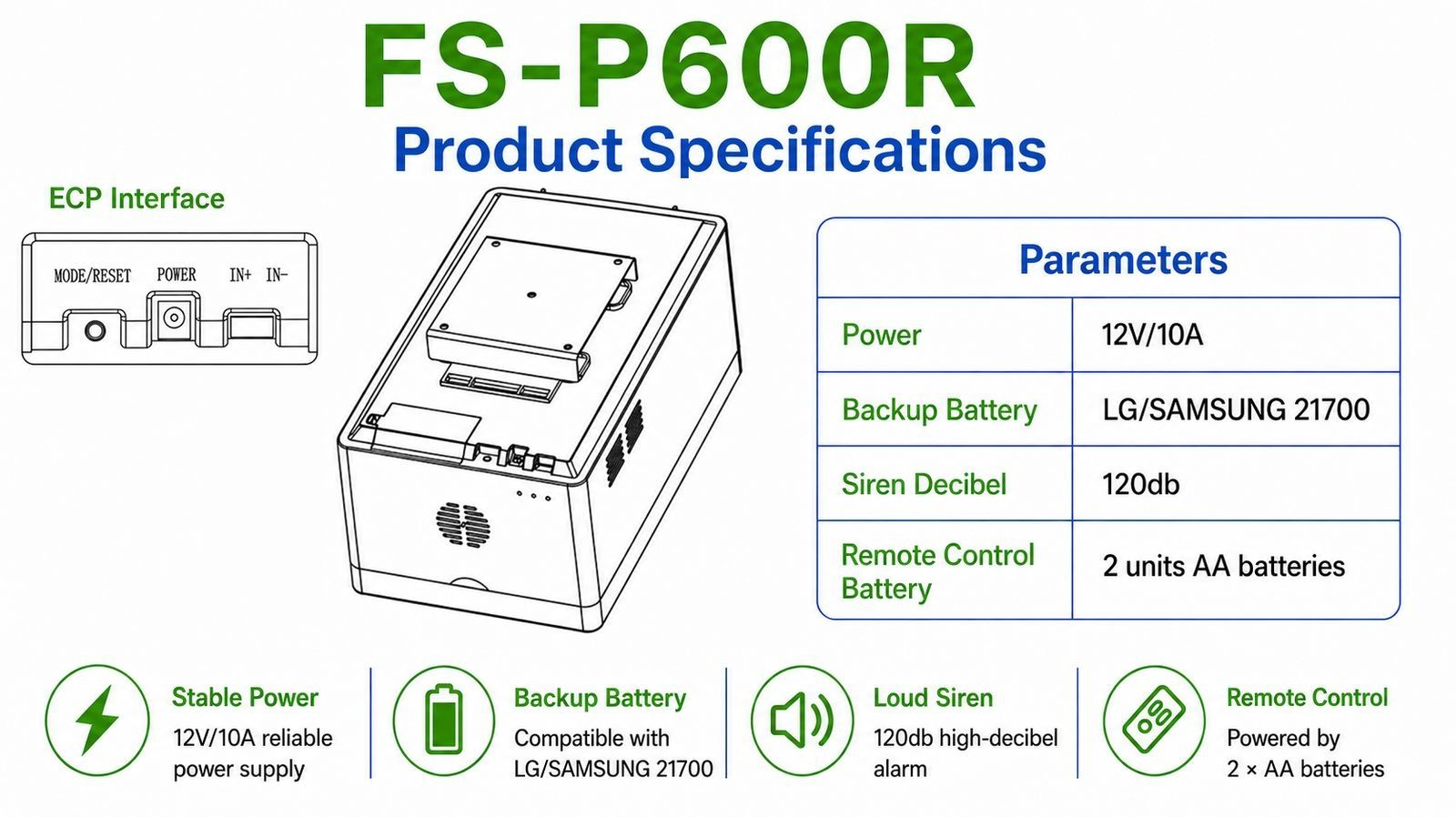

Technical Data
| Product Type | High-output security fog generator |
| Protection Volume | Up to 600 m³, depending on site conditions and configuration |
| Fog Output Modes | 3 adjustable modes |
| Canister Configuration | Up to 6 independent canisters |
| Activation Method | Wired dry-contact signal, RF remote control |
| Alarm Output | 120 dB siren and smoke trigger |
| Power Supply | 12V/10A |
| Backup Battery | Compatible with 2x LG/SAMSUNG 21700 cells-up to 48 hours after main power loss. |
| Remote Control Battery | 2 × AA batteries |

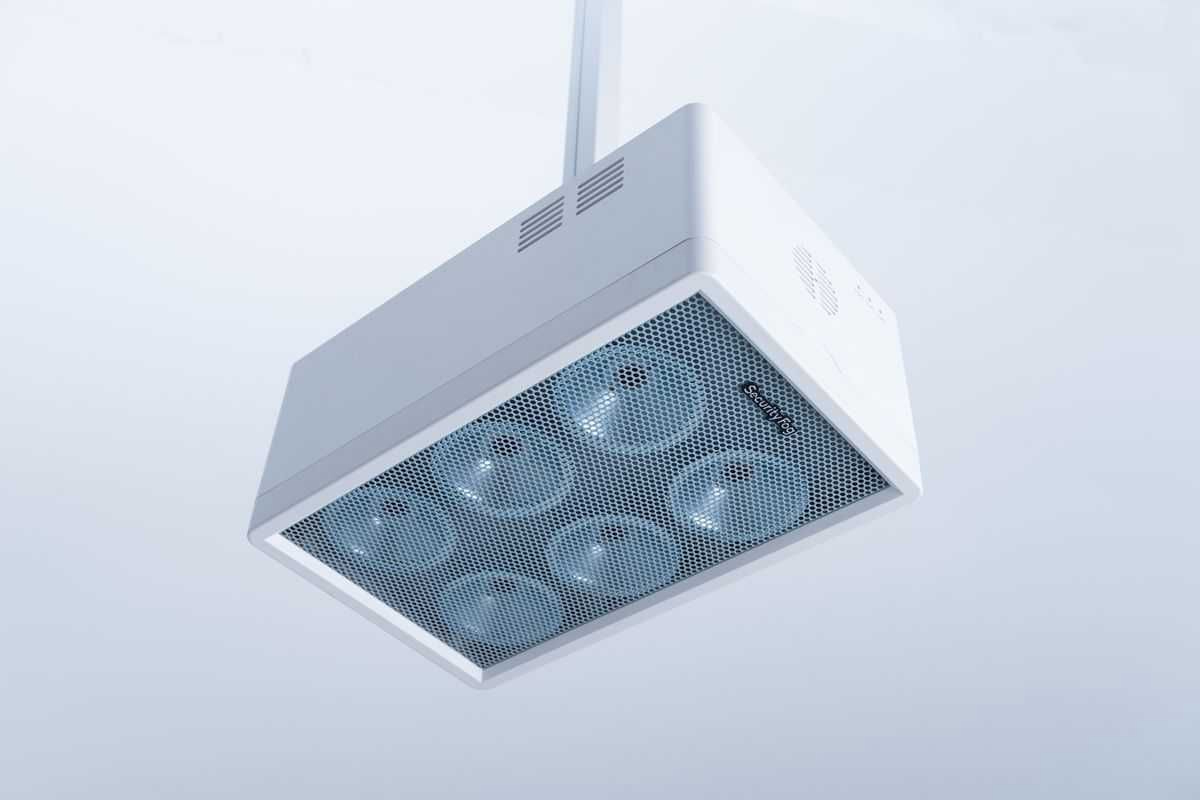

| Installation Type | Ceiling |
| Maintenance | Replaceable smoke cartridges; no special routine maintenance required |

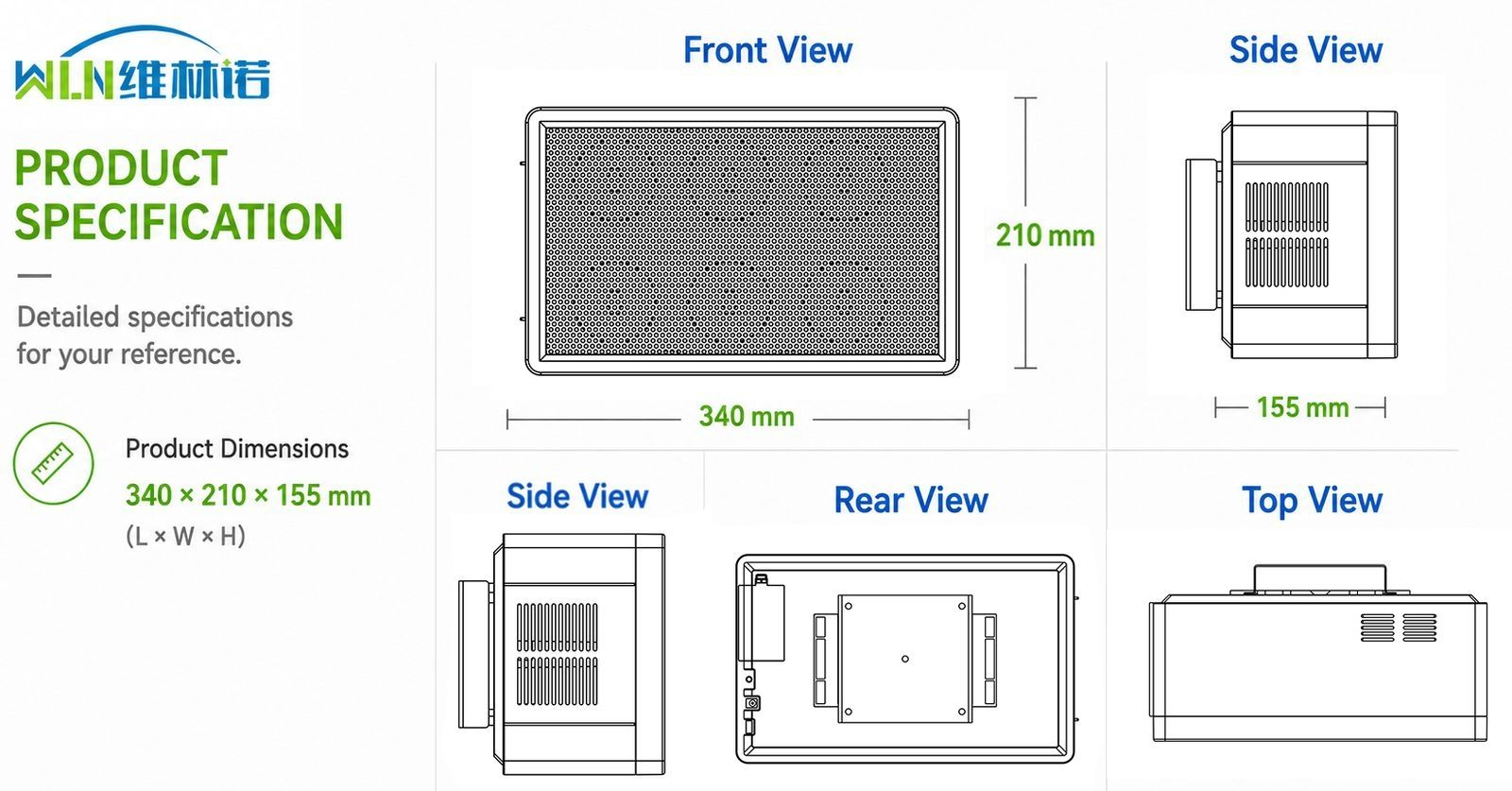

| Product Dimensions & Weight | Approximately 340 × 210 × 155 mm, 7.5KG. |
Compatible Smoke Cartridges
The FS-P600 Series is designed to use compatible FS-P600 Series replacement smoke cartridges.
Refills & Maintenance
The FS-P600R uses a refillable smoke cartridge design for easier long-term operation. Replacement is straightforward, helping reduce downtime and maintenance cost.
Please confirm the compatible cartridge model before ordering or replacing consumables.
* Do not mix cartridges from different product families without technical confirmation.
Installation And Integration
Smoke Output Options

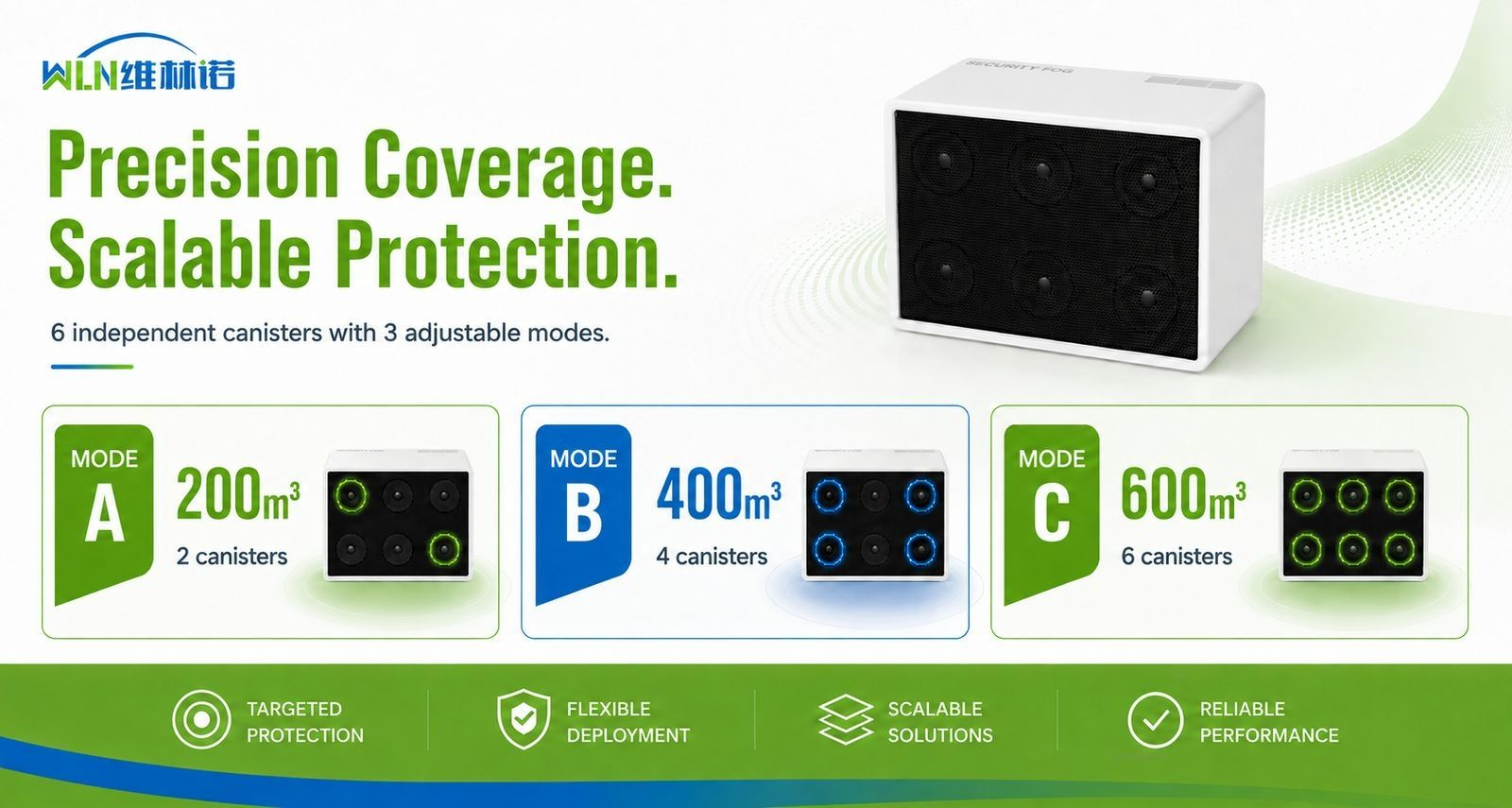

The FS-P600R uses six independent canisters with three configurable output modes, helping installers match smoke output to the size and layout of the protected area.
LEVEL | LED COLOR | CANISTERS | COVERAGE/DEPLOYMENT | TOTAL COVERAGE & DEPLOYMENT |
Level 1 | ● Blue | 2 canisters | Up to 200 m³ | 600m³(3 activations) |
Level 2 | ● Green | 4 canisters | Up to 400 m³ | 600m³, (2 activations) |
Level 3 | ● Red | 6 canisters | Up to 600 m³ | 600m³, (1 activation) |
Protection volume depends on site conditions, room layout, installation configuration, and other project factors. Please contact Verinuo for application-specific recommendations.
Why Choose FS-P600 Series?
Requirement | FS-P600 Advantage |
Adapt smoke output to different room sizes and risk levels, for medium-large area protection. | 3levels adjustable, from 200 to 600 m³ protection. |
Integrate easily with existing alarm panels and security systems | Standard dry-contact input works with most alarm panels and sensors |
More way to deter intruders | 120 dB siren for strong audible deterrence |
Power concern | External 12 V/10 A power supply + backup battery support |
Low lifetime cost and easy maintenance | Replaceable smoke cartridge design |
What is the maximum protection volume of the FS-P600R?
The FS-P600R can provide protection for areas of up to 600 m³, depending on room layout, site conditions, installation configuration, and selected smoke output mode.
Can the FS-P600R connect to an existing alarm system?
Yes. The system supports a wired dry-contact trigger signal for connection with compatible alarm panels and security systems.
How many smoke output levels are available?
The FS-P600R provides three adjustable output modes for different protection volumes and project requirements.
Does the FS-P600R include a siren?
Yes. The system includes a 120 dB siren for audible warning and intrusion deterrence.
Does the system support backup power?
Yes. The FS-P600R supports an external 12V/10A power supply and a compatible backup battery configuration.
How are the smoke cartridges replaced?
The smoke cartridges are replaceable and designed for convenient replenishment. Always confirm model compatibility and follow the applicable installation instructions before replacement.
Does the system require special maintenance?
The FS-P600R is designed for easy installation and routine operation without special daily maintenance. Periodic system checks and replacement of the smoke cartridge after activation may be required.
Can the FS-P600R be customized?
Verinuo supports selected OEM/ODM and project-specific requirements, including enclosure, wiring, control functions, packaging, and system integration, subject to technical evaluation.
Need Help Selecting the Right Model?
Our team can help you select the appropriate FS-P600 Series configuration based on your application, protected area, alarm system, control method, and project requirements.
