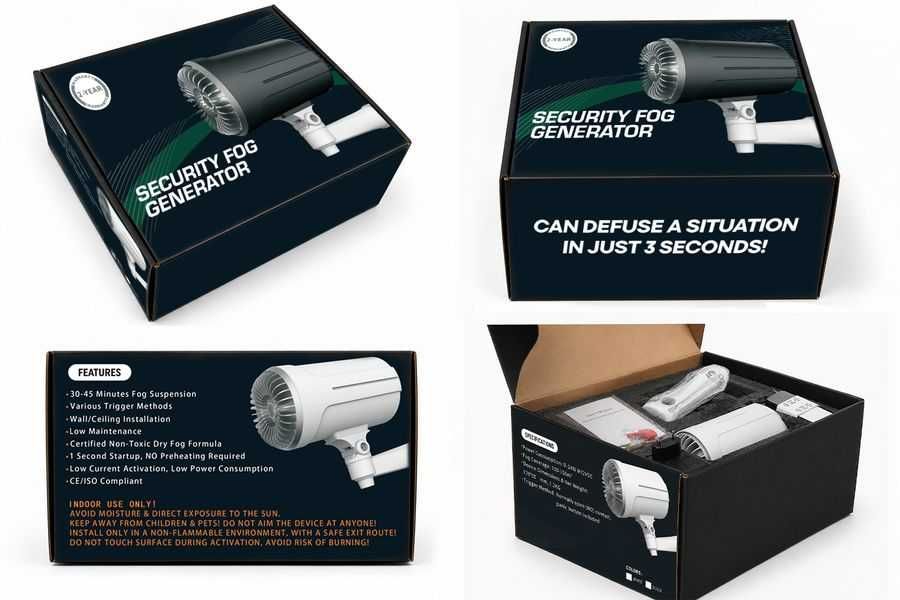

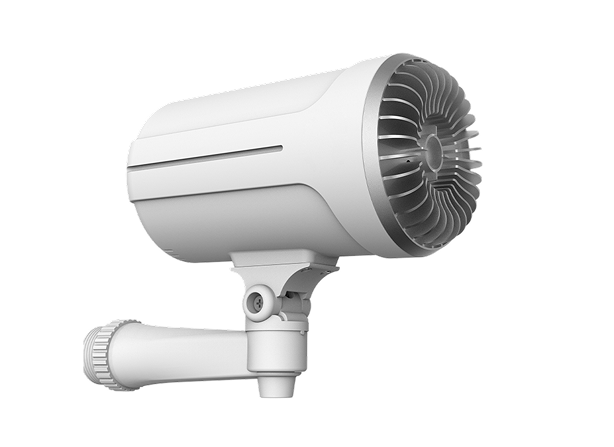

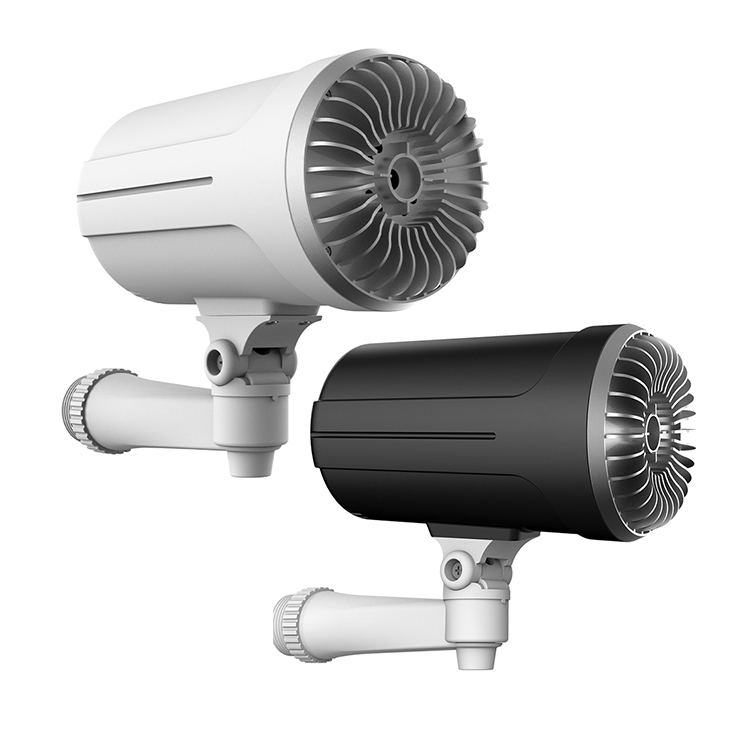

FS-C100 Series
Compact Security Fog Generators
- Wired alarm triggering
- Remote control optional
- Battery powered optional
- App control optional
- Easy to install and maintenance-free
Key Features
Active visual protection
The system generates security fog after activation, helping reduce visibility and create additional time for security response.
Flexible model selection
Different model configurations allow distributors, installers, and system integrators to select the appropriate solution for each project.

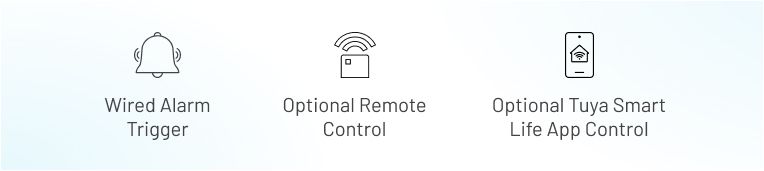

Multiple control options
Depending on the model, the system can be operated through an alarm signal, remote control, backup battery, or Tuya Smart Life app.
Compact installation
Its compact structure makes it suitable for retail stores, offices, homes, small warehouses, and other limited-space applications.
Alarm system integration
The FS-C100 Series can be connected to a compatible wired alarm system and triggered through an alarm signal.
Available FS-C100 Series models
| MODEL | CONFIGURATION | RECOMMENDED FOR |
|---|---|---|
| FS-C100Z | Standard version | Projects requiring basic wired alarm integration |

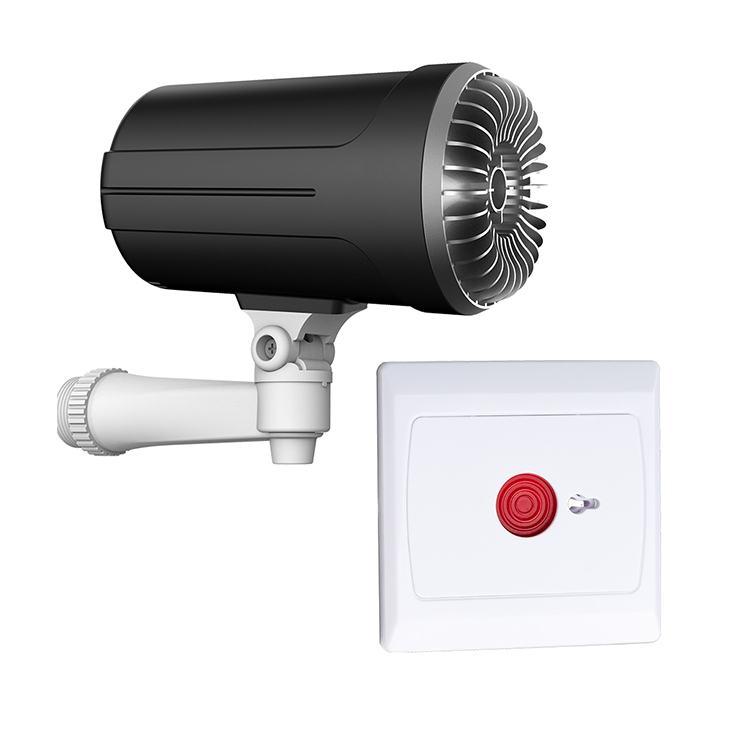

| FS-C100R | Remote control version | Installations requiring additional remote operation |
| FS-C100BZ | Battery powered version | Sites requiring continued operation during temporary power interruption |
| FS-C100BR | Battery powered+ remote control | Projects requiring both battery power and remote operation |
| FS-C100T | Tuya Smart Life app control | Smart security and remote app management applications |
Applications

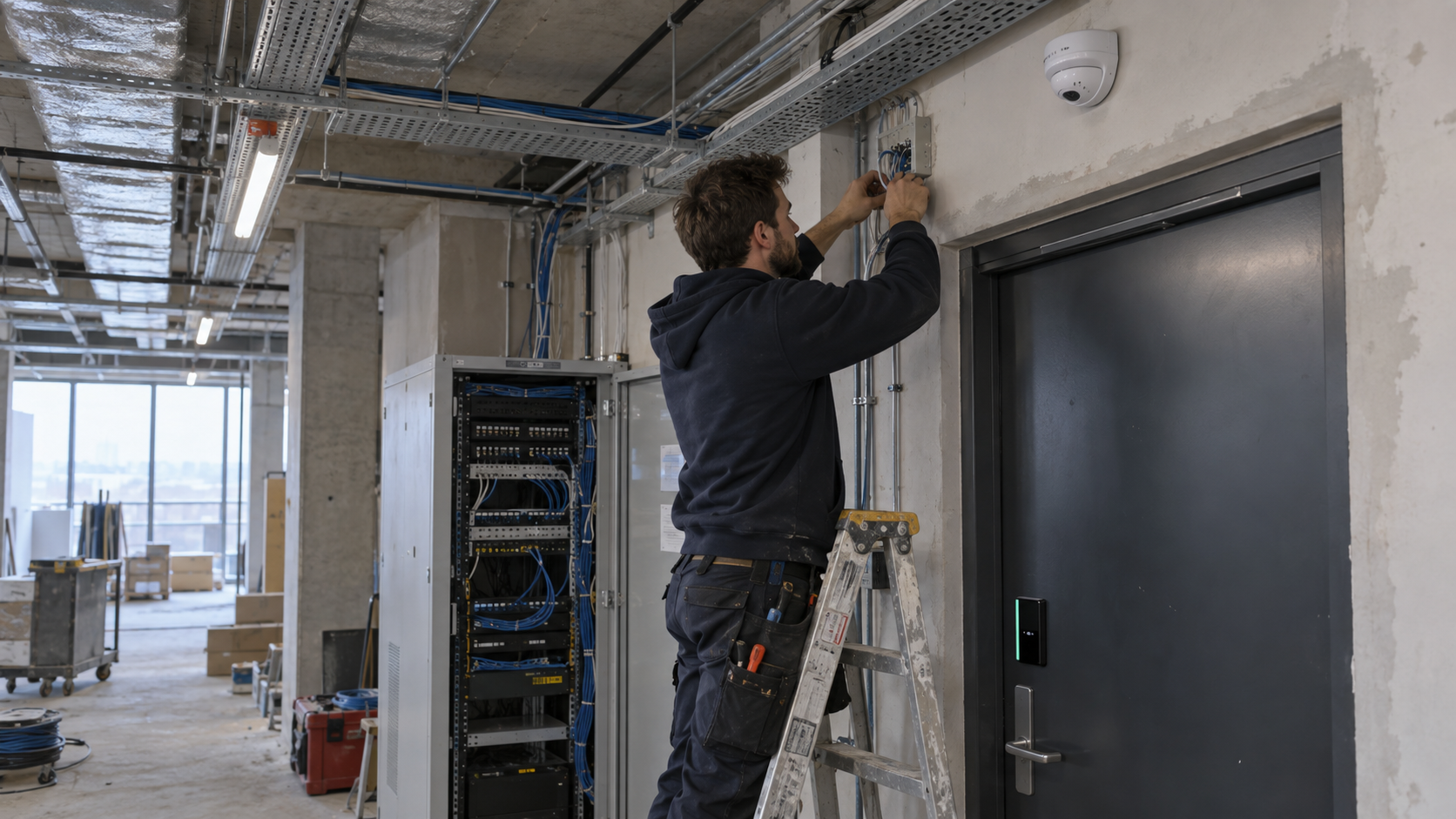

System Integration Projects
For security integrators and distributors requiring a compact fog security product for alarm system projects.

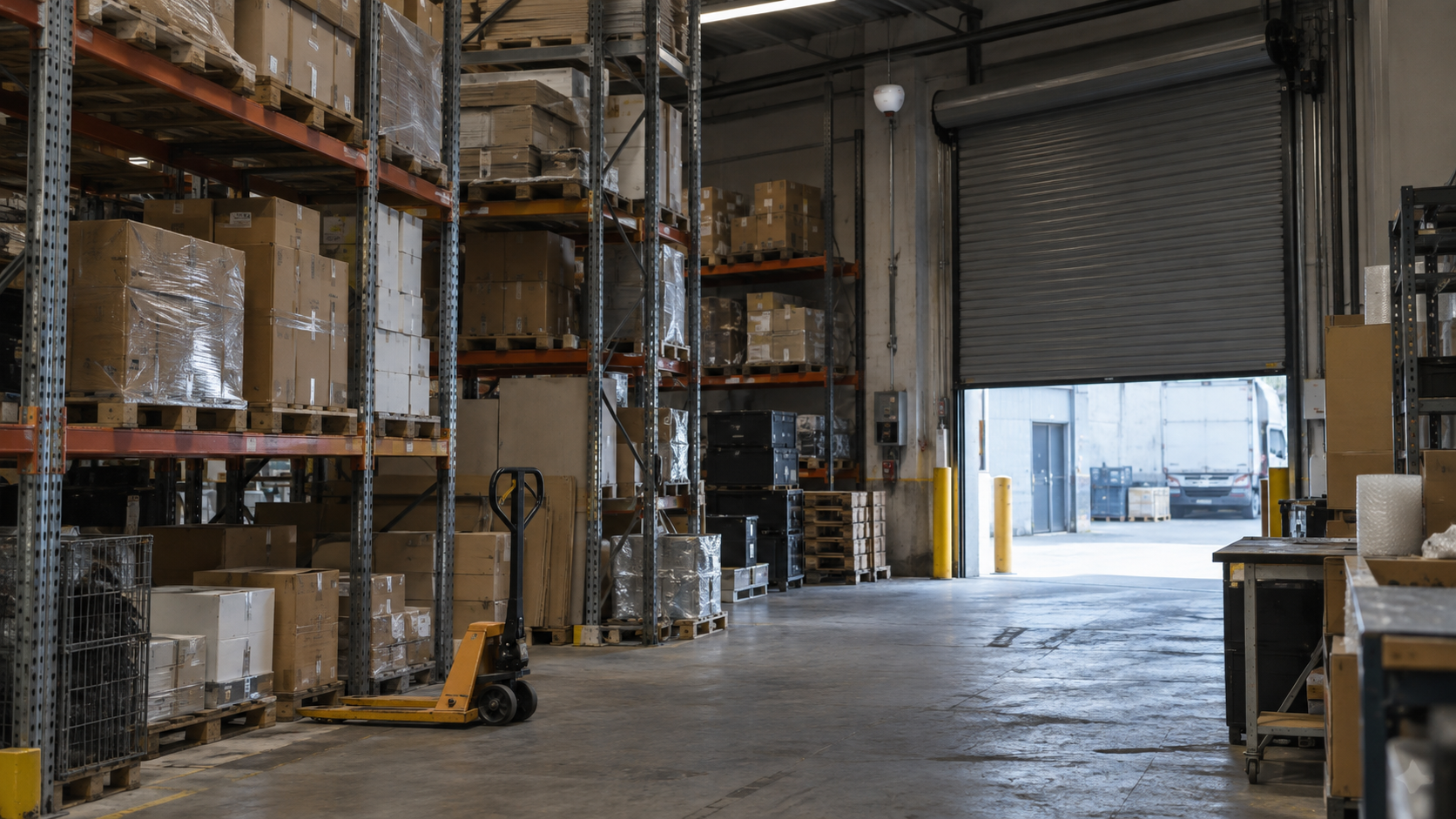

Small Warehouses
For protecting inventory, tools, spare parts, and other valuable assets.

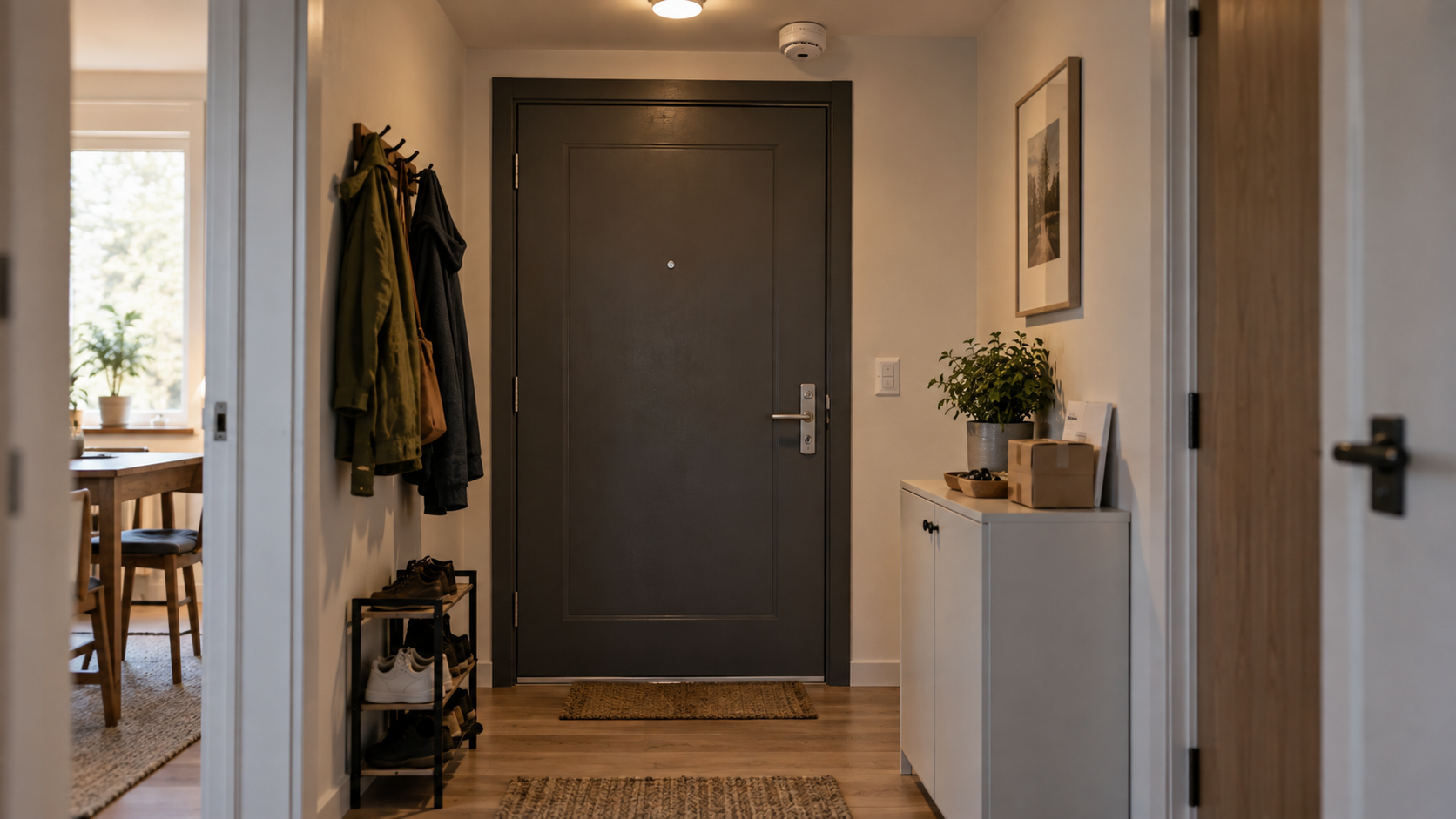

Homes and Apartments
For residential security applications requiring an additional active protection layer.

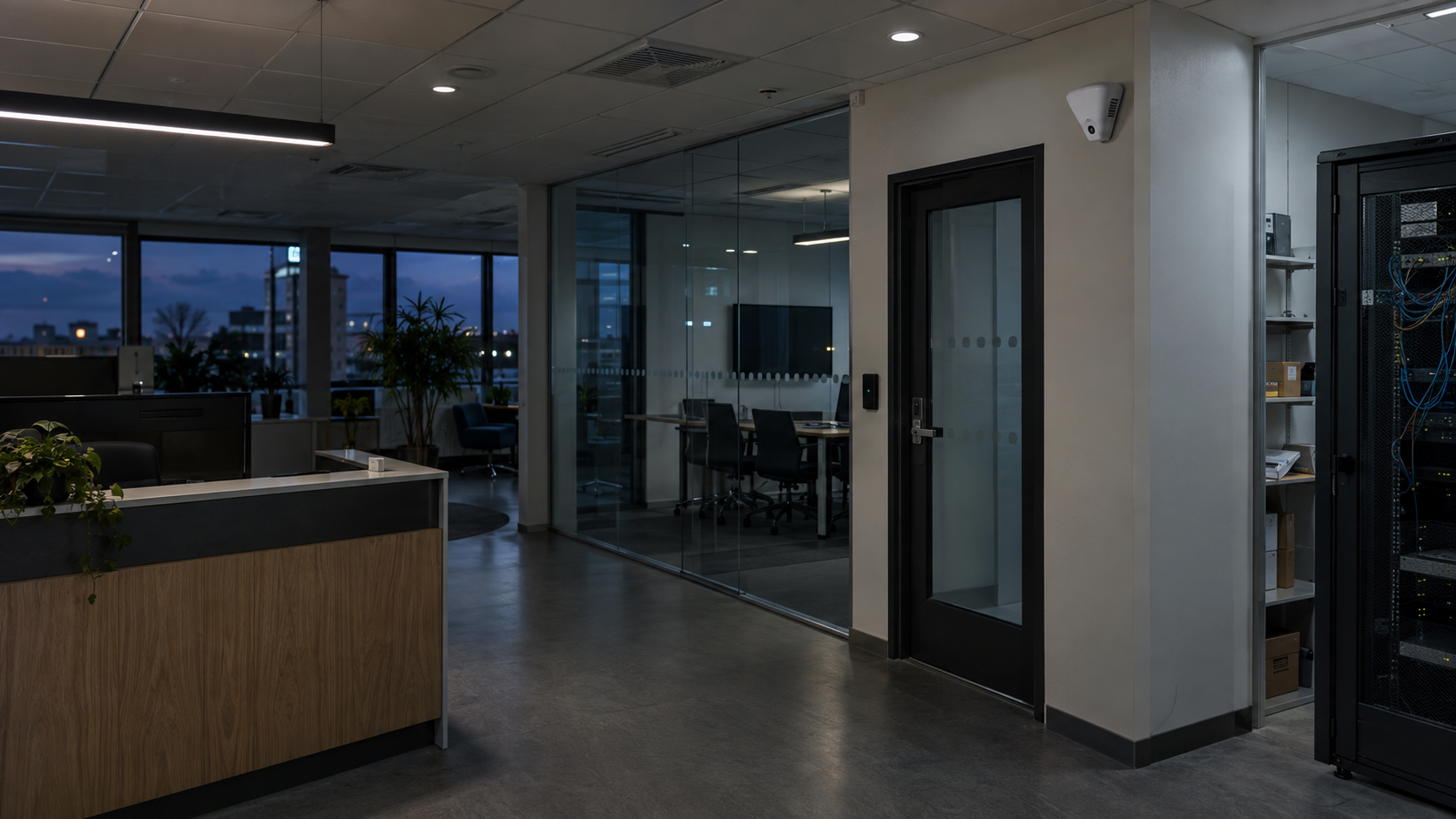

Offices
For protecting sensitive documents, equipment, server areas, and restricted rooms.

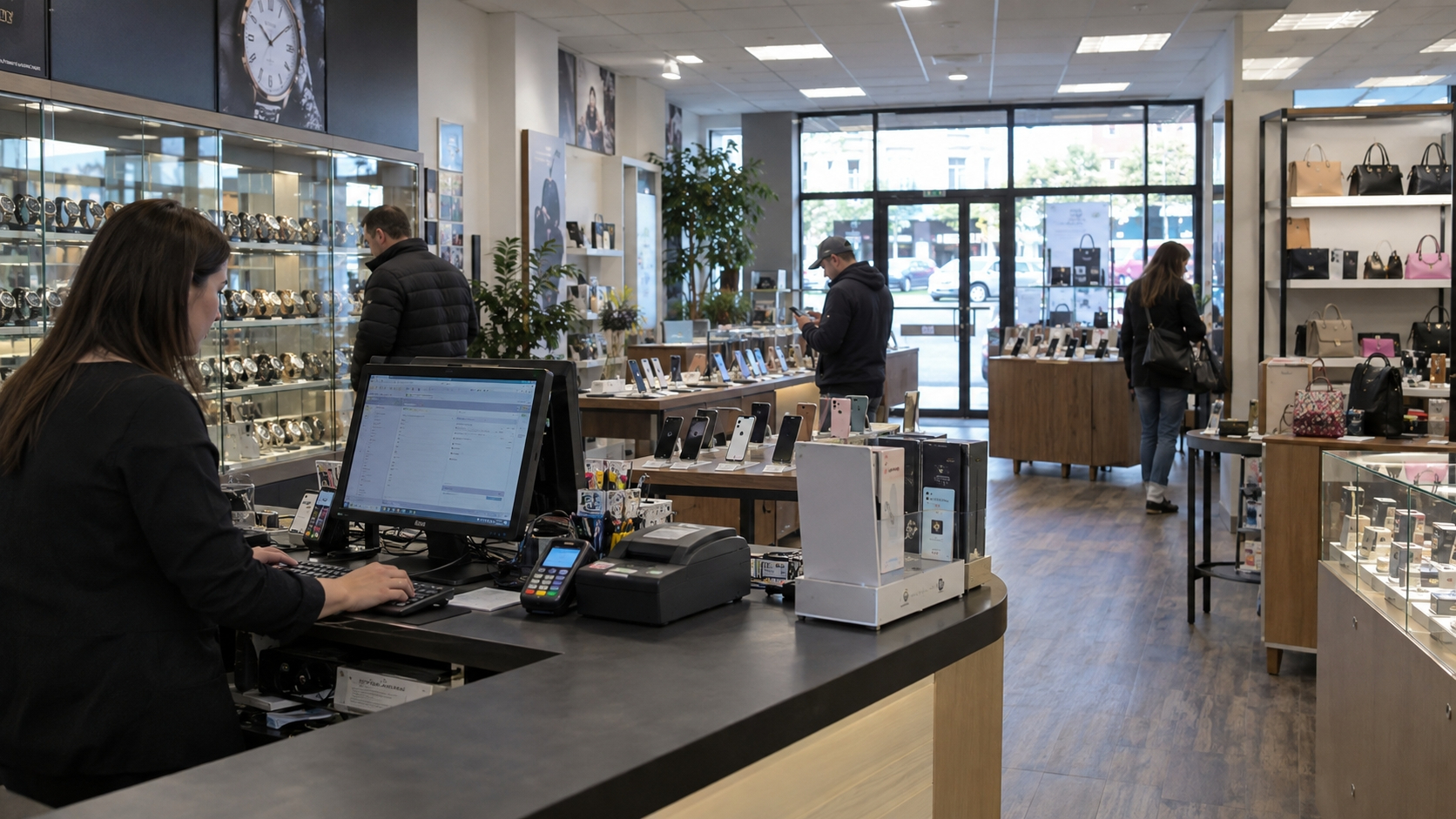

Retail Stores and Showrooms
For protecting high-value merchandise, display areas, stockrooms, cash registers, jewelry counters, and after-hours retail premises.
How It Works
Alarm detection
A connected alarm system detects an unauthorized entry or other security event.
Fog Generator Activation
The FS-C100 unit receives the trigger signal and activates according to the configured control logic.
Visibility Reduction
Security fog is discharged into the protected area, helping reduce visibility and delay unauthorized access while the security response is initiated.
Alarm Detection
FS-C100 Series Activation
Security Smoke Discharge
Reduced Visibility
More Time for Response
Technical Data
| Certifications | CE, FCC, ROHS, REACH, NON-TOXIC |
| Battery Powered | Available on selected models (FS-C100BZ/BR) |
| Product Type | Compact security Fog generator |
| Installation Type | Wall Mount & Ceiling |
| Main Application | Commercial and residential security |
| Smoke Refill | Compatible FS-C1/C1F Series cartridge |
| Activation Method | Wired alarm signal |
| Alarm Integration | Compatible wired alarm system |
| Optional Control | Remote control / Tuya Smart Life app, depending on model |
| Power Supply | 12V/3A |
| Activation Speed | 0.5-1 second, all smoke comes out within 14±2 seconds |

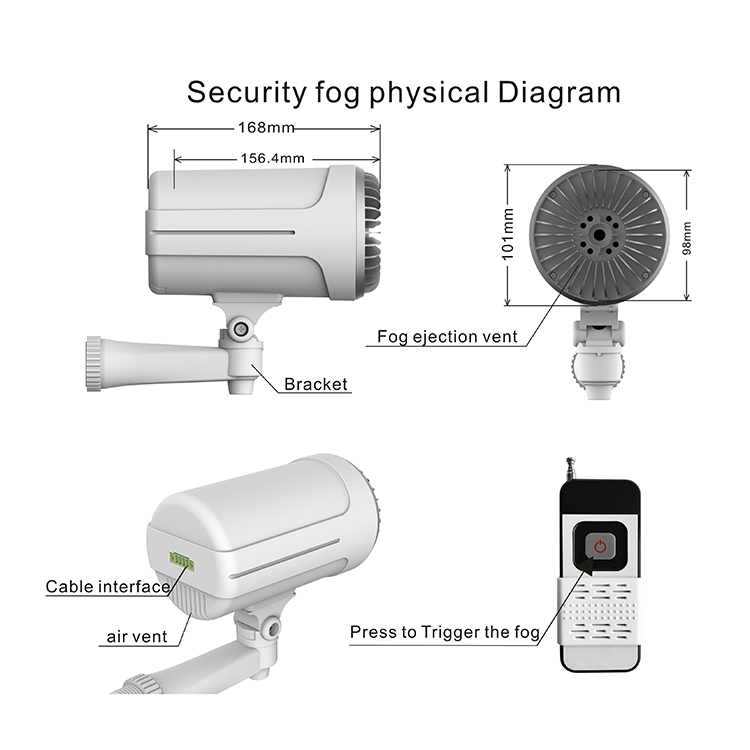

| Dimensions (Cylindrical shape) | Diameter: 95 mm; Height: 170 mm |
| Power | 12V / 3A |
| Net Weight | 1.8–2KG |
| Smoke Duration | 30~45 minutes |
| Recommended protection area | 100–150 cubic meters |

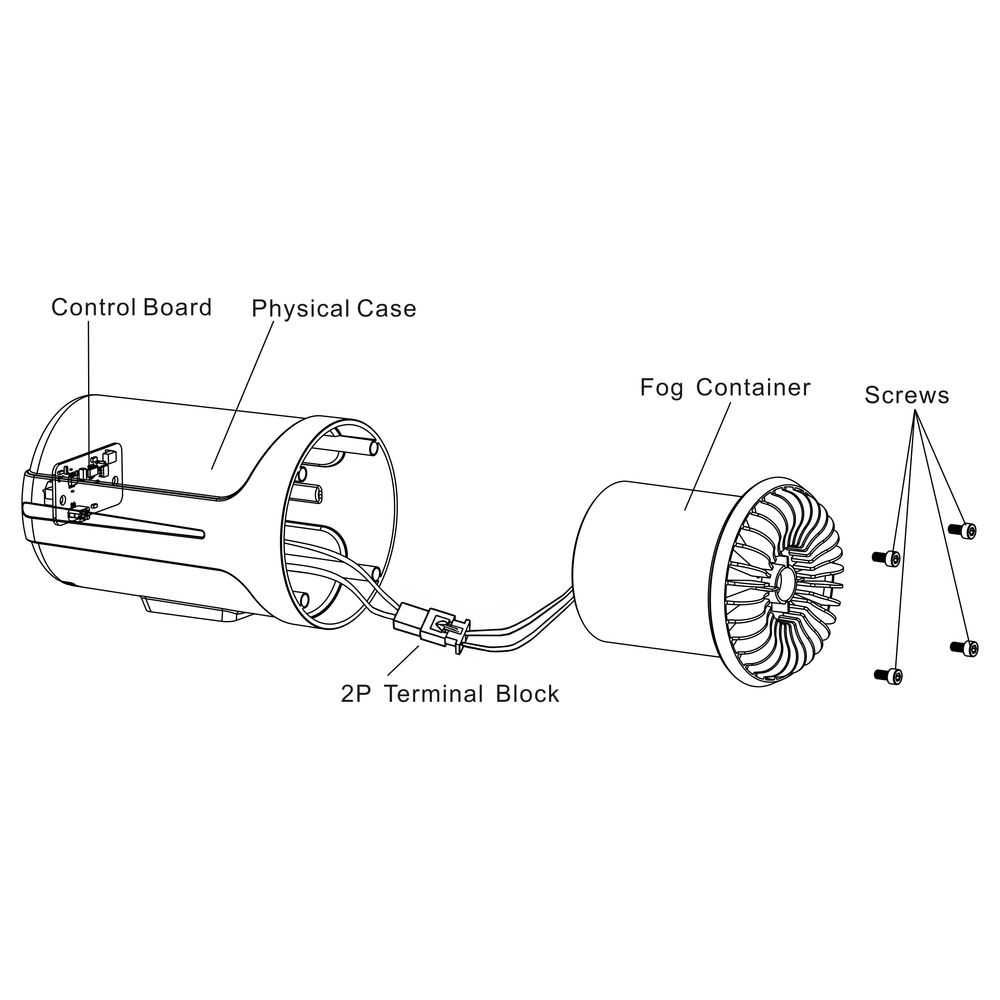

Compatible Smoke Cartridges
The FS-C100 Series is designed to use compatible FS-C100 Series replacement smoke cartridges.

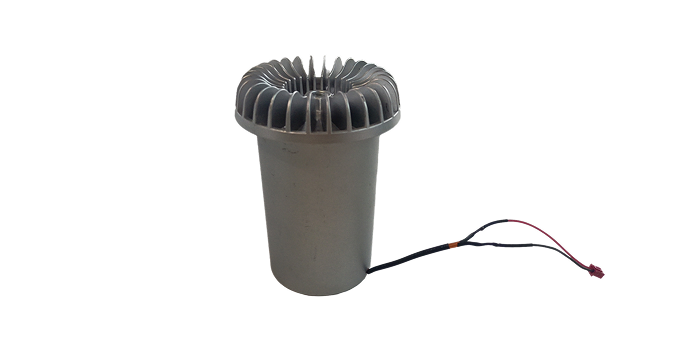

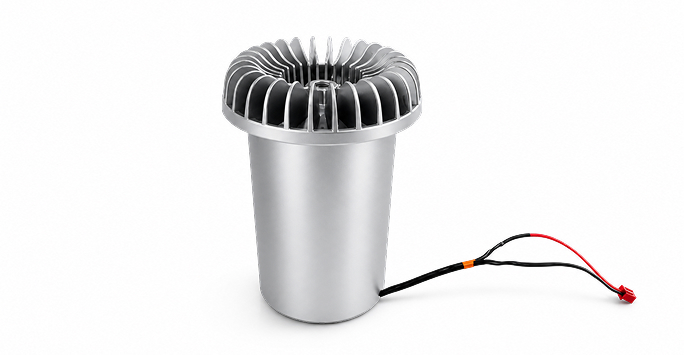

FS-C1/C1F
Filtered replacement smoke cartridge for the FS-C100 Series;
the built-in filter(optional)is designed to help reduce residue after fog discharge

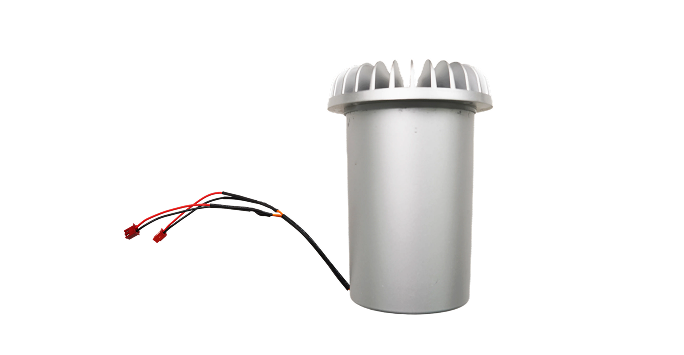

FS-C1
Replacement smoke cartridge for the FS-C100BZ&BR
* Do not mix cartridges from different product families without technical confirmation.

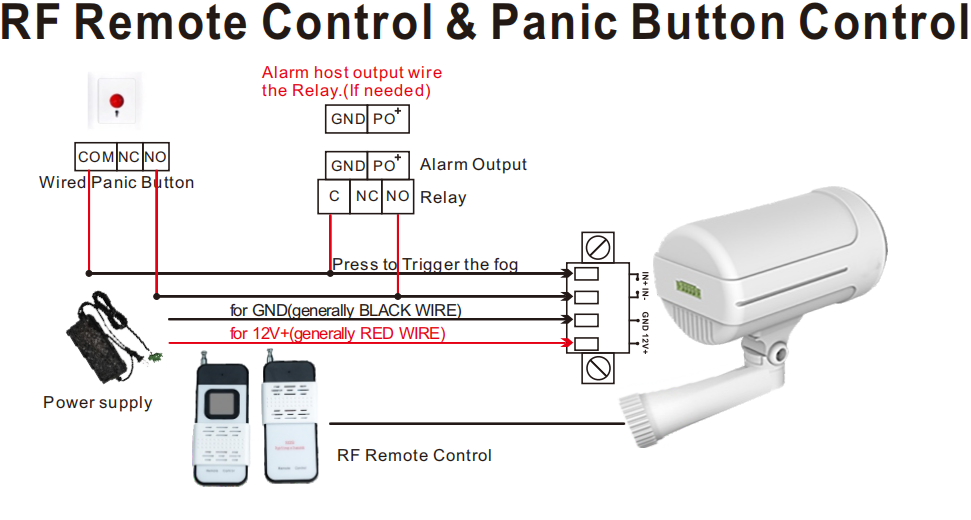

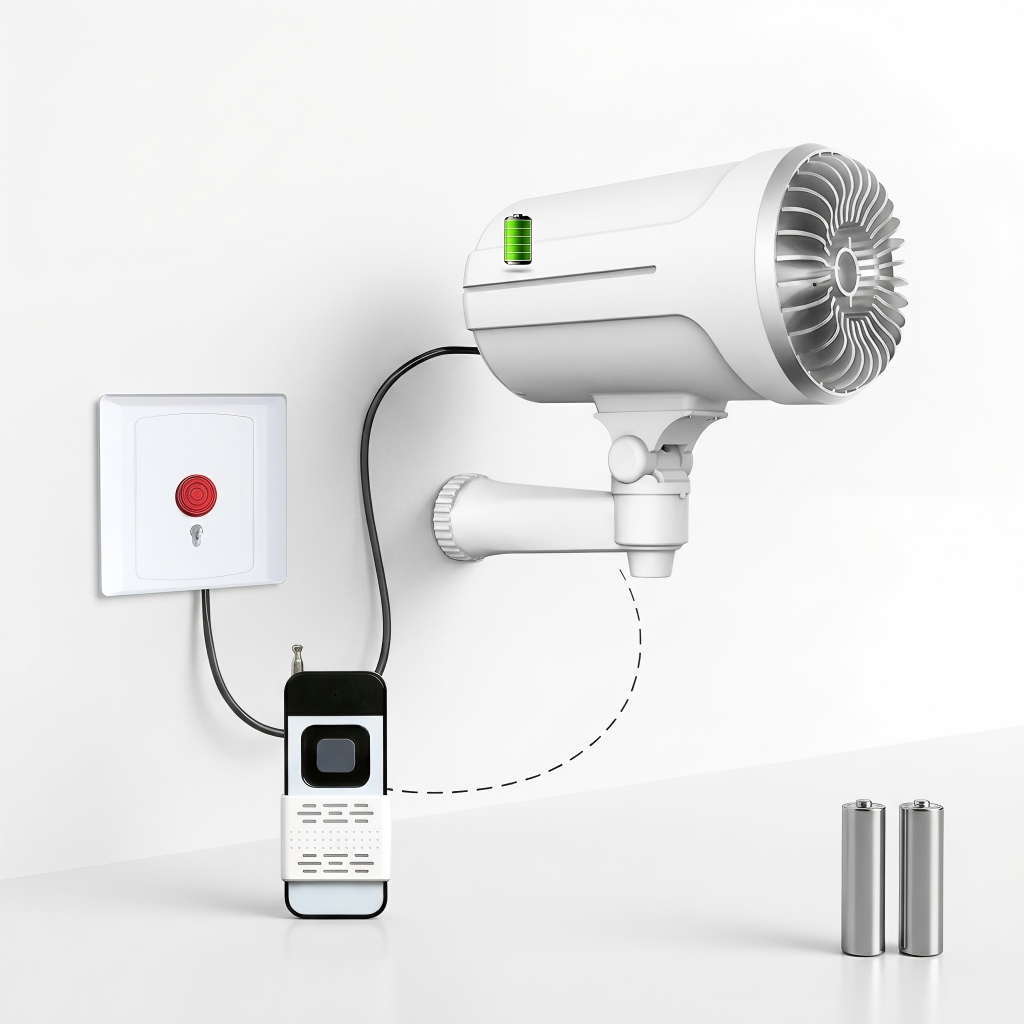

Installation And Integration
Easy to Integrate with Existing Security Systems
The FS-C100 Series can be integrated with a compatible wired alarm system. Compatibility should be confirmed according to the alarm panel output and wiring configuration.
Integration Options
Integration Disclaimer
Compatibility depends on the alarm panel output, voltage requirements, wiring configuration, and installation environment. Please provide your system information to our technical team for compatibility confirmation.
Why Choose FS-C100 Series?
Requirement | FS-C100 Advantage |
Limited installation space | Compact product design |
Existing alarm system | Wired alarm integration |
Remote operation | Optional remote control |
Power interruption concern | Optional battery powered model |
Smart security requirement | Optional Tuya Smart Life app control |
Different project budgets | Multiple model configurations |
Is the FS-C100 suitable for homes?
Yes. The FS-C100 Series can be used in residential applications, including homes, apartments, and small private premises, subject to proper installation and local requirements.
Can the FS-C100 connect to an existing alarm system?
The series is designed for integration with a compatible wired alarm system. The alarm panel output and wiring configuration should be confirmed before installation.
Which FS-C100 model supports app control?
The FS-C100T is the app-control version listed for Tuya Smart Life app integration. Please confirm the latest app functions and regional availability with our sales team.
Which model includes battery?
The FS-C100BZ and FS-C100BR models are listed with battery powered. FS-C100BR additionally includes remote control.
What cartridge does the FS-C100 use?
The FS-C100 Series is designed to use compatible FS-C1 Series replacement smoke cartridges, including the FS-C1 and FS-C1F versions.
Can I use the FS-C100 outdoors?
The standard product positioning is for indoor fixed installation. Outdoor use should only be considered after confirming the enclosure, environmental conditions, power supply, and installation requirements with our technical team.
Does the product replace an alarm system?
No. The FS-C100 is an active security fog device designed to work with a compatible alarm system. It should be used as part of a complete security solution rather than as a replacement for intrusion detection.
Need Help Selecting the Right Model?
Our team can help you select the appropriate FS-C100 Series configuration based on your application, protected area, alarm system, control method, and project requirements.
